6 Ton firewood biomass pellet fired steam boiler industrial boilers for sale
1. Product fuel characteristics
Our Biomass pellet-fired steam boileris closed mechanical equipment that uses biomass as fuel, generates
heat energy and converts heat energy in the process of combustion.
Yongxing Biomass pellet fired steam boiler is the most environmentally friendly and energy-saving boiler.
The amount of CO2 absorbed by biomass fuel during its growth is
basically equal to the amount of CO2 generated by combustion, and
it is a kind of renewable green energy with almost no sulfur
content.
In the next few years, biomass energy will gradually replace the
current use of coal products, become one of the main energy.
Biomass fuels come from a wide range of sources, including crop
straw, bamboo twigs, bamboo processing waste, rice husks, fruit
husks, bagasse and so on.
biomass pellet fired steam boiler fuel as follow pictures
According to the characteristics of loose and light biomass fuel,
the shape of the furnace is changed, the furnace volume is
improved, and the design of low flow resistance is designed, so as
to reduce the fan power and realize the purpose of energy-saving
and electricity saving.
According to the specific requirements of different fuels, the
company can set up a burner in front of the boiler to achieve
automatic feeding, reducing labor intensity, and improving
combustion efficiency.
2. Product structure features

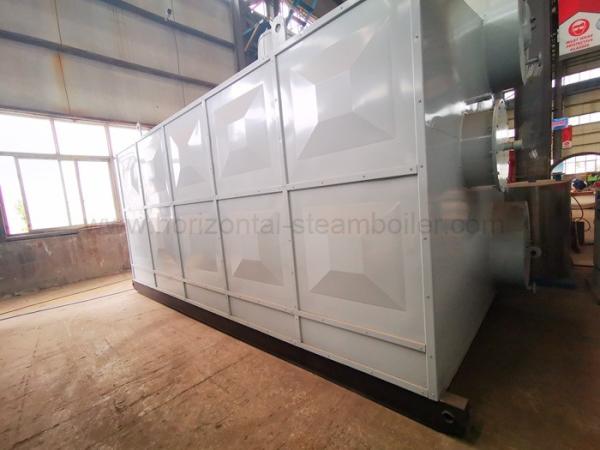

1. Biomass pellet fired steam boiler adopts horizontal single-drum cylinder longitudinal arrangement of
three-stroke water-fire tube structure, with dense light tube
water-cooled wall tube on both sides of the furnace, reasonable and
compact design structure;
2. Inside the pot, a screw pipe with a high heat transfer
coefficient of two return passes is arranged, and the flue gas
forms a three-return pass process;
3. Large heating area, good heat transfer effect, full output, low
smoke exhaust temperature;
4, the use of the appropriate front and rear arch, good burning
conditions, full combustion;
5. Reasonable water circulation system, high circulation ratio,
safe and reliable, large water capacity, large steam space, and
good steam quality;
6, Biomass pellet fired steam boiler is a fast-loading factory, short installation cycle, low
installation cost, boiler single-layer layout, infrastructure
Industrial Boilers For Sale Advantages:
1. Multiple interlocking protection is adopted for pressure and
water shortage to ensure safe and reliable operation of boilers;
2. industrial boilers for sale Equipped with low-noise and energy-saving induced draft fan to
save electricity and improve the operating environment;
3. industrial boilers for sale Smoke emission conforms to GB13271 standard;
4. The Biomass pellet-fired steam boiler has a compact structure, easy installation, extremely low failure
rate, and no noise.
Follow is biomass fuel comparation of each other.
| Biomass fuel | coal |
| Volume | The compressed volume Save storage space Make it easier to transport Reduce transportation costs | Large-volume Take up storage space High transportation cost |
| Combustion efficiency | High combustion efficiency Easy to burn out The small amount of residual carbon | Should not be lit High volatile content High flashpoint |
| environmental protection or not | Not easily produced when burned Sulfur dioxide Phosphorus pentoxide and other harmful gases | Combustion chamber generation Sulfur dioxide Phosphorus pentoxide Lead to acid rain, pollution of the atmosphere, not environmental
protection |
| Quickly installed boiler |
| boiler model | Unit | DZL1-0.7/1.0-AII | DZL2-0.7/1.0-AII | DZL4-0.7/1.25/1.6-AII | DZL6-1.25/1.6-AII |
| capacity | ton/h | 1 | 2 | 4 | 6 |
| rated pressure | Mpa | 0.7/1.0 | 0.7/1.0 | 0.7/1.25/1.6 | 1.25/1.6 |
| rated steam temperature | ℃ | 170/184 | 170/184 | 184/193/204 | 193/204 |
| feed water temperature | ℃ | 20 | 20 | 20 | 105 |
| radiation area | ㎡ | 4.21 | 6.43 | 10.55 | 16.95 |
| convection area | ㎡ | 20.68 | 39.23 | 90.45 | 134.87 |
| economizer area | ㎡ | 9.66 | 16.56 | 16.56 | 53.13 |
| valid grate area | ㎡ | 1.852 | 3.15 | 5.18 | 8.395 |
| applicable fuel | * | COAL | COAL | COAL | COAL |
| exhaust gas temperature | ℃ | 152/160 | 152/161 | 163/163.8/169.5 | 163/169 |
| design efficiency | % | 77.73/77.24 | 78.53/78.18 | 79.37/79.30/78.96 | 79.83/79.19 |
| fuel consumption | kg/h | 170.74/172.93 | 341.71/343.63 | 673.22/676.27/682.11 | 866.39/877.51 |
| max part size for delivery | mm | 5488*2254*2782 | 5694*2704*3324 | 6743*2954*3508 | 8244*2951*3704 |
| DZH 1 - 6 t Coal / Biomass Fired Steam Boiler Technical Parameters |
| Item No. | DZH1-1.0 | DZH2-1.0 | DZH4-1.25 | DZH6-1.25 |
| Rated steam output(t/h) | 1 | 2 | 4 | 6 |
| Rated work pressure(Mpa) | 1 | 1 | 1.25 | 1.25 |
| Rated steam temperature(°C) | 184 | 184 | 194 | 194 |
| Rated feed water temperature(°C) | 20 | 20 | 20 | 20 |
| Thermal efficiency(%) | 77.18 | 76.8 | 78.8 | 78.5 |
| Fuel consumption (kg/h) | 172 | 358 | 726 | 1080 |
| Shipping size(m) | 4.31*1.9*2.86 | 5.41*2.6*3.1 | 5.86*2.8*3.39 | 6.2*2.96*3.58 |
Induced Draft
Fan | Model | Y9-19-6.3C | GY2-15 | Y6-41-7.1C | Y9-26-10D |
| Power(KW) | 5.5 | 11 | 18.5 | 45 |
Forced Draft
Fan | Model | 4-72-3.3A | GG1-15 | G6-41-6.4A | 4-72-5A |
| Power(KW) | 2.2 | 3 | 5.5 | 15 |
| Water Pump | Model | 1W2.4-10.5 | 11/2GC-5*7 | 11/2GC-5*7 | 2GC-5*6 |
| Power(KW) | 3 | 7.5 | 7.5 | 18.5 |
Grate Governor
Box | Model | WT-4 | WT-4 | WT-5 | WT-6 |
| Power(KW) | 0.55 | 0.55 | 0.55 | 1.1 |
| Slag Remover | Model | GBC-1 | GBC-2 | GBC-4 | GBC-6 |
| Power(KW) | 1.1 | 1.1 | 1.1 | 1.5 |
| Coal Conveyor | Model | FS-1 | FS-2 | FS-4 | FS-6 |
| Power(KW) | 1.1 | 1.1 | 1.1 | 1.5 |
