4 Ton Diesel Most Efficient
Oil Fired Boiler 1 Ton - 20 Ton For Food Processing
Introduction of Most Efficient Oil Fired Boiler
1. Yongxing most Efficient Oil Fired Boiler is a combined automatic
horizontal three-way fire pipe wet back structure boiler.
Oil Fired Boiler produce hot water, saturated steam or superheated steam.
Oil Fired Boiler is suitable for natural gas, liquefied petroleum gas, biogas,
biogas, diesel, heavy oil, and other fuels.
2. Most Efficient Oil Fired Boiler is equipped with large brand burners and valve groups such as
Baltur, Riello, Weishaupt, Oilon, etc., with 80% configuration,
fuel combustion is more complete, combustion conditions are stable,
high quality, safe and stable.
3. Optimize the exhaust gas flow design to ensure that the waste at
high temperature is in full contact with the boiler tube, reducing
the temperature of the exhaust gas, saving energy and improving
thermal efficiency.
4. The self-developed PLC control panel can operate the boiler more
conveniently. The electric control cabinet is equipped with
multiple intelligent systems to receive signals from various
instruments and control the entire working system, including burner
on/off and water pump on/off. , water softener, etc.
5. With multiple automatic protection systems such as
over-temperature, overpressure, water shortage, leakage, flameout,
and other protection
6. It adopts a double-layer 12cm aluminum silicate insulation
design, which has good sealing effect and strong heat insulation
capacity, effectively reducing heat loss.
7. It is equipped with an explosion-proof door design to prevent
the explosion, design solid steel tie rods, improve the strength of
the tube sheet, prevent cracking and improve the safety performance
of the boiler.
8. It adopts a double safety valve, double water level gauge and
redundant design of double pressure gauge, which is safe and
reliable.
9. High-quality vertical stainless steel water pump, compact and
simple, low power consumption.
10. The storage water is large, the steam is sufficient, and the
steam quality is high.

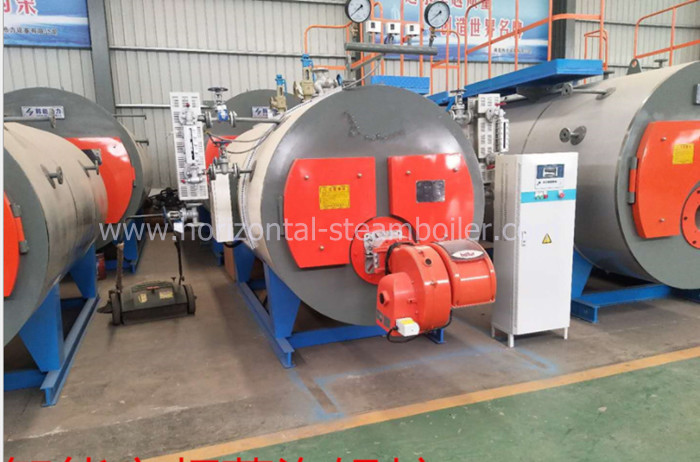

In the picture, it includes
PLC,
Burner,
Valves,
water level gauge,
water alarm
Pressure guage
and instrument
Most Efficient Oil Fired Boiler Technical parameter sheet
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 93.5 |
The above are standard models of our boiler, customized
specifications are available.
Most Efficient Oil Fired Boiler application
Beverage factory, Food processing industry, Textile factory,
Printing and dyeing factory, Garment factory,
Papermill, Plywood factory, Poultry feed mill, Refinery, Rice mill,
Noodle factory, Sugar mill, Wood processing industry,
Carton factory, Cardboard factory, Dyeing mill, Leather factory,
Packaging industry, Central heating, Greenhouse, Hospital, Rubber
factory, Slaughterhouse, Soap factory, Bitumen plant, etc.
Welcome for your inqiury any time !
