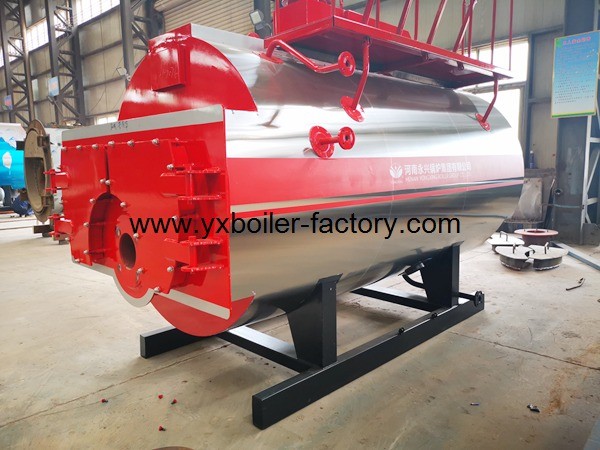

Oil Fired Steam Boiler With Economizer 98% High Thermal Efficiency
( 0.5 - 20 T / H )
Oil Fired Steam Boiler characteristics
1. Oil Fired Steam Boiler's overall structure is reasonable, compact, belongs to the boiler
island type, in line with the fast loading factory conditions.
2. Boiler body, chimney and pipeline system, in which the host and
the chimney section has been made in our factory finished, the host
pipe valves, the instrument has form a complete set of random
loading, shipped to the site will be the host and the chimney can
be assembled.
3. Scene test. Just by turning on the air supply, power supply, the
water greatly shorten the installation period and can guarantee the
quality of the product.
4. Oil Fired Steam Boiler design performance is advanced.
The features of reasonable structure, compact, low steel
consumption.
offset waveform furnace
Thermal insulation layer choose new lightweight heat insulation
material
Outer packing use color sheet and stainless steel, appearance
packaging for the rectangle
The boiler has beautiful performance, reasonable weight, structure
size, and compared with the capacity of other product, it has
obvious advancement on the look and feels.
5. The Oil Fired Steam Boiler feed water equipment locate in the boiler right side.
6. Simple water circulation, reasonable structure of pressurized
parts, and safe operation under the condition of ensuring water
quality.
4. Oil Fired Steam Boiler with complete auxiliary machinery, advanced comprehensive
technical performance.
Oil Fired Steam Boiler characteristic
1. Pressure: In the range of 10.54 to 17.54 Kg/cm2 (g)
2. Efficiency: Overall efficiency of 88 % (+/-2%) on NCV
3. Capacity – 1 to 6 TPH, 100 deg. C (entire range extends up to 32
ton/hr)
4. Fuel Light/Heavy Oil, Gas (the combination of Oil & Gas)
5. Special wet back design
6. Rugged & dependable operators efficiently at fluctuating loads,
with consistent dryness
7. World-class burner systems from Baltur, Riello, Oilon & Thermax
8. High purity of steam
9. High thermal efficiency up to 90%+
10. Typical applications- pharma, distilleries, breweries,
bottling, food, rubber, hotels, engineering, hospitals etc
Oil Fired Steam Boiler Advantages
1. Oil Fired Steam Boiler has Large corrugated furnace design, good heat exchange
efficiency, NOX<30mg/m3;
2. well-known auxiliary machine configuration, a large horse-drawn
car, stable operation, long service life
3. Imported burners from abroad
4. Double vertical stainless steel water pump (good sealing,
anti-corrosion and anti-rust, long service life),
5. Touch screen control cabinet (stupid operation, safety,
stability),
6. Sub-cylinders (standard parts are entered in and out, if there
are special requirements, they can be explained in advance),
7. Water treatment equipment (flow type),
8. Double energy-saving device (good energy-saving effect, high
heat transfer efficiency)
9. high thermal efficiency, energy-saving 5-10% operating costs
II. Oil Fired Condensing steam Boilers parameters
| Model | Output | Pressure | Temperature | Fuel | Temperature |
| (t/h) | (Mpa) | (ºC) | (ºC) |
| WNS0.5-0.7/1.0/1.25-YQ | 0.5 | 0.7/1.0/1.25 | 170/184/194 | heavy oil/light oil, natural gas/LPG/city gas | 20 |
| WNS0.7-0.7/1.0/1.25-YQ | 0.7 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS0.8-0.7/1.0/1.25-YQ | 0.8 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1-0.7/1.0/1.25-YQ | 1 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1.5-0.7/1.0/1.25-YQ | 1.5 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS5-1.0/1.25/1.6-YQ | 5 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS8-1.25/1.6-YQ | 8 | 1.25/1.6 | 194/204 | 20 |
| WNS10-1.25/1.6-YQ | 10 | 1.25/1.6 | 194/204 | 20 |
| WNS12-1.25/1.6-YQ | 12 | 1.25/1.6 | 194/204 | 20 |
| WNS15-1.25/1.6-YQ | 15 | 1.25/1.6 | 194/204 | 20 |
| WNS20-1.25/1.6-YQ | 20 | 1.25/1.6 | 194/204 | 20 |
Oil Fired Steam Boiler different place with normal boiler:
1. Environmental protection: The measured minimum emission of NOX
can be less than 80mg/m3, in line with the country's most stringent
environmental standards;
2. Energy saving: The actual gas consumption of 1 ton of steam is
<60m3, which is far below the industry data;
Over 100,000 cooperative projects have been reached, which can be
field trip
Dear friend,
Thanks for your time in scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: Oil fired condensing boiler
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler
will be suitable for you and we will provide you our product
details and quotation. Thank u.
It is ok to copy the question and answer directly when sending us
the inquiry!
Welcome to you any time!
