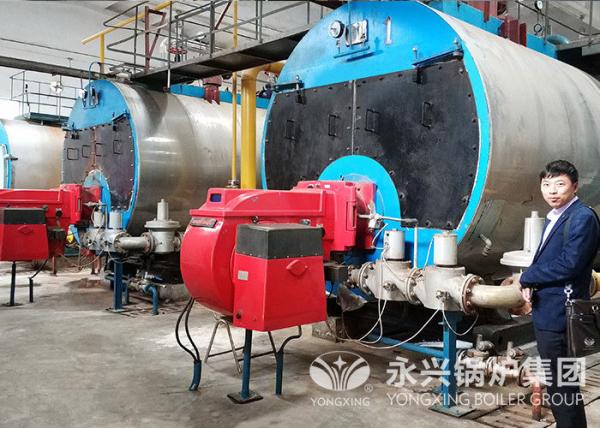

10 ton steam boiler Gas Fired Steam Boiler 10000Kg/hr Running Low
Consumption Fuel
Brief intrduction of 10 ton steam boiler Gas Fired Boilers
1. Three-way wet back structure.
2. 10 ton steam boiler has a large combustion chamber, which not only increases the
heating area, but also reduces the volume of the boiler.
3. 10 ton steam boiler use a multi-stage sealing method to ensure no smoke leakage.
4. Horizontal structure, sufficient heating area, sufficient heat
transfer to ensure stable and efficient operation of the boiler.
5. 10 ton steam boiler has big steam evaporation surface, high quality steam .
6. Automatically operation,PLC control, through the acoustooptic
display equipment operating parameters and fault alarm.
Quick Details of 10 ton steam boiler
| Steam Capacity | 10 ton steam boiler |
| Fuel Applicable | Natural gas,LPG, LNG, CNG, Diesel, Light oil, Heavy oil, Kerosene, |
| Working pressure | 0.7Mpa,1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa |
| Steam temperature | 171℃,184℃, 194℃, 204℃, 225℃ |
| Structure | Three pass, fire tube, wet back |
| Heat efficiency | 100.9% |
10 ton steam boiler application fields
1. Food Industry
Industrial 10 ton steam boiler for food & beverage industry is used in the processes of
distillation, sterilization, disinfect, extraction, drying, and
curing, etc. The boiler should be clean and environmental
protection, so, 10 ton steam boiler is better to use the clean energy as the fuel, such as natural
gas, biomass fuel, and electricity.
2. Brewery/Brewhouse
In brewery, steam is used for drying green malt,
gelatinizing/saccharifing raw materials, boiling wort, fermenting
beer, and pasteurizing bottles. Otherwise, hot water is also used
for sanitization. Generally, the 10 ton steam boiler with 0.5ton~2ton capacity is enough for a brewery, while, based on
the production ability, the 10 ton steam boiler capacity is a little different.
3. Sugar Mill
In sugar mill, steam plays a significant role for the processes of
heating, gelatinization, and saccharify. The 10 ton steam boiler temperature needed is from about 30℃ to 80℃.There is a heating
equipment under the mash kettle, steam enter into the heating
equipment and then heat the raw material in mash kettle. 10 ton steam boiler is used for heating, gelatinization, and saccharify, etc.
4. Textile Industry
Industrial 10 ton steam boiler plays a significant role in the textile industry, the 10 ton steam boiler is used for different processes, such as dyeing and drying, and
support the use of resing finishing stenter, dyeing machine, drying
room, and mixing mill, etc. The needed temperature of textile
process is 60~180℃. 10 ton steam boiler developed a wide range of industrial boilers that could be used
for textile industry.
5. Paper Processing Industry
In paper processing industry, there are many processes (drying,
corrugating, boiling, etc.) that need steam. For example, steam is
necessary for drying, after squeezing, the paper still contain a
large amount of water (53%~70%), then 10 ton steam boiler is used for drying paper, and combine used with the cast iron
dryer.
10 ton steam boiler design auxiliaries:
1. Equipped with world famous burners and valve sets, such as
Baltur, Riello, Weishaupt, Oilon, etc., for full combustion, stable
performance and low failure rate
2. Waveform furnace and screw pipe design can provide larger
heating area, improve the ability of radiation heat transfer,
improve thermal efficiency
3. Equipped with the condensing waste heat recovery device, which
absorbs the smoke and gas eliminated by the boiler, greatly
improves the boiler's thermal efficiency, reaching more than 100.9%
4. Adopt self-developed large LCD screen and PLC control system to
keep abreast of the operation of boiler system.
5. Equipped with a variety of safety control devices, such as
boiler temperature is too high, pressure is too large, the water
level is too low, the boiler automatically stop operation, greatly
improve the boiler operation safety factor.
6. Equipped with special explosion-proof door, automatic rebound
after pressure relief, to ensure the safe and efficient operation
of the boiler.
10 ton steam boiler technical datasheet
| Model | Output | Pressure | Temperature | Fuel | Temperature |
| (t/h) | (Mpa) | (ºC) | (ºC) |
| WNS0.5-0.7/1.0/1.25-YQ | 0.5 | 0.7/1.0/1.25 | 170/184/194 | heavy oil/light oil, natural gas/LPG/city gas | 20 |
| WNS0.7-0.7/1.0/1.25-YQ | 0.7 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS0.8-0.7/1.0/1.25-YQ | 0.8 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1-0.7/1.0/1.25-YQ | 1 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1.5-0.7/1.0/1.25-YQ | 1.5 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS5-1.0/1.25/1.6-YQ | 5 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS8-1.25/1.6-YQ | 8 | 1.25/1.6 | 194/204 | 20 |
| WNS10-1.25/1.6-YQ | 10 | 1.25/1.6 | 194/204 | 20 |
| WNS12-1.25/1.6-YQ | 12 | 1.25/1.6 | 194/204 | 20 |
| WNS15-1.25/1.6-YQ | 15 | 1.25/1.6 | 194/204 | 20 |
| WNS20-1.25/1.6-YQ | 20 | 1.25/1.6 | 194/204 | 20 |
Gas Fired Boilers FAQ:
Dear friend,
Thanks for your time for scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: 10 ton steam boiler
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler
will be suitable for you and we will provide you our product
details and quotation. Thank u.
It is ok to copy the question and answers directly when sending us
the inquiry!
Welcome you any time!
