    Industrial Oil System Boiler Diesel Gas Fired Chamber Combustion High Performance

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : YY(W)L
    Certification : ISO9001,ISO14001,SGS
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000sets/year
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

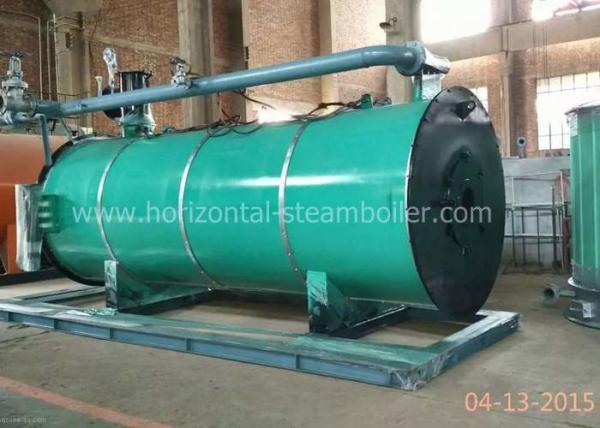

    Industrial Oil System Boiler Diesel Gas Fired Chamber Combustion High Performance

    Low Pressure Oil System Boiler/ Industrial Hot Oil Boiler Diesel Gas Fired


    Oil System Boiler Product Description


    The heat transfer oil furnace uses oil and gas as fuel and heat transfer oil as the medium.

    The circulating oil pump is used to push the medium, the heated medium is transported to the heating equipment, and the medium to be heated is sent to the boiler for heating, thereby circulating and reciprocating.

    The Oil System Boiler heat supply is up to 300 ° C or above, the general working pressure is less than 1 MPa, and two or more heat transfer oils of different temperatures can be simultaneously output according to customer requirements.


    Features of Oil System Boiler


    1. Oil System Boiler can precisely adjust the temperature to meet the strict temperature requirements.

    2. The Oil System Boiler has a compact structure, saves floor space and is easy to install, as long as the body and the combustion chamber are closed.

    3. The air preheater is installed at the tail of the boiler, which greatly improves the efficiency of the boiler.

    4. Set automatic detection, control, chain alarm prompt, and integration can achieve no need to guard, saving labor costs.


    Industrial Oil System Boiler Diesel Gas Fired Chamber Combustion High Performance
    Oil System Boiler technical datasheet

    YY(Q)W Gas/Oil Fired Thermal Oil Boiler Technical Data
    Model&
    Specification
    Rated Output *104kcal/hRated working pressure (Mpa)Max temperature (ºC)Thermal efficiency
    %
    Medium Circulation
    M3/h
    Heating Area
    M2
    Medium Volume in Furance M3Transportion Weight
    KG
    YY(Q)W-240-Y(Q)200.8/1.0300/3209416.6190.122110
    YY(Q)W-350-Y(Q)3028.1230.252580
    YY(Q)W-500-Y(Q)4032.5350.313141
    YY(Q)W-700-Y(Q)6045390.364053
    YY(Q)W-1000-Y(Q)8055450.494382
    YY(Q)W-1200-Y(Q)10064560.615209
    YY(Q)W-1400-Y(Q)120771041.056400
    YY(Q)W-1900-Y(Q)160821091.49000
    YY(Q)W-2100-Y(Q)1801081181.69156
    YY(Q)W-2400-Y(Q)2001281291.810000
    YY(Q)W-3000-Y(Q)2501612102.213000
    YY(Q)W-3500-Y(Q)3002252442.7514000
    YY(Q)W-4200-Y(Q)3602562802.9215000
    YY(Q)W-5000-Y(Q)4002903103.0516000
    YY(Q)W-6000-Y(Q)5003553893.3321550
    YY(Q)W-7000-Y(Q)6004084693.6928400

    Industrial Oil System Boiler Diesel Gas Fired Chamber Combustion High Performance
    Oil System Boiler FAQ:

    Dear friend,

    Thanks for your time for scanning our products.
    We need the following information to confirm the boiler model:
    1.Boiler type: Oil System Boiler
    2.Boiler capacity?
    3. Boiler pressure?
    4. Boiler application?
    After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.

    It is ok to copy the question and answers directly when sending us the inquiry!

    Welcome you any time!
