    High Thermal Efficiency Hot Water Boiler Furnace Horizontal For Timber Drying

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : CWNS2.1-95/70-YQ
    Certification : ISO9001,ISO14001,A-CLASS,SGS,BV
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 1000SETS/MONTH
    Delivery Time : 15-30DAYS
    • Product Details
    • Company Profile

    High Thermal Efficiency Hot Water Boiler Furnace Horizontal For Timber Drying

    Competitive Industrial Water Boiler High Thermal Efficiency For Timber Drying


    Industrial Water Boiler brief introduction


    The heat transfer oil furnace is a new type of special boiler with low temperature and high pressure working characteristics. The heat conduction is used as the medium, and the circulating oil pump is continuously pressurized so that the heat transfer oil is continuously circulated, the high temperature circulating oil is sent to the user equipment, and the circulating oil is sent to the boiler for reheating and reciprocating.

    The heat-conducting oil furnace is a new type of boiler with horizontal three-return structure. The composition of the heated surface mainly consists of a radiant heating surface composed of an inner coil and a convection heating surface composed of middle and outer coils. The boiler system has a high utilization rate and operation and maintenance. Convenience.


    Industrial Water Boiler features:

    1. The heating temperature is up to 300 °C, the general working pressure is below 1MP, the pressure inside the boiler is small, and the operation is safe and reliable.

    2. The air preheater is installed at the tail of the boiler, and the use of the energy-saving device greatly improves the efficiency of the boiler.

    3. The boiler adopts the latest control system to control the medium, and the heat loss is small, and the position of the fault can be automatically locked, and the maintenance is convenient.

    4. With multiple safety monitoring systems, such as automatic detection, automatic control, chain alarm prompts, etc., the boiler does not need to be on duty during operation, saving manpower and material resources.

    The design of the misaligned double seal groove is tightly sealed to prevent secondary leakage.

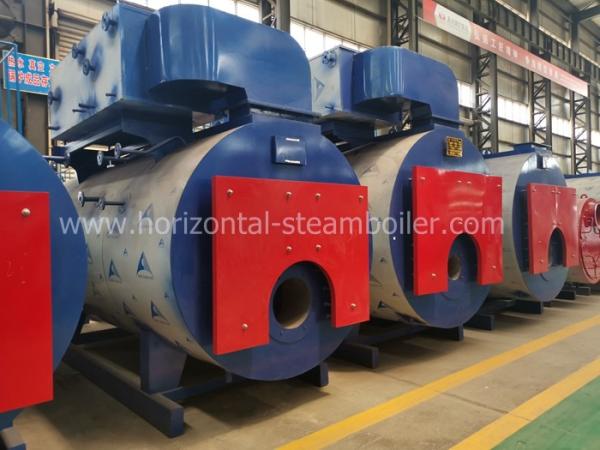

    High Thermal Efficiency Hot Water Boiler Furnace Horizontal For Timber Drying

    Industrial Water Boiler technical data sheet

    Main technical parameters of CWNS oil (gas) atmospheric pressure and pressure hot water boiler
    Project modelCWNS, WNS series hot water boiler
    Rated calorific value (MW)0.350.71.051.42.12.83.54.25.678.410.512.614
    Working pressure (MPa)Normal pressure/pressure
    Outlet water temperature (°C)85/115

    Backwater temperature (°C)

    60/70
    Boiler thermal efficiency (%)91—95
    Feed water temperature (°C)20
    Fuel consumptionDiesel (Kg/h)3265.498131196.2261.6327392.4523.2654784.898111771310
    Heavy oil (Kg/h)3469.5105139208.5278347.54175566958641042.512511390
    Natural gas (m3/h)39.579.3119159237.9317.2396.5475.8644793951.61189.51427.41586
    Liquefied gas (m3/h)14.22943.55887116145174232290348435522580
    City gas (m3/h)84168.5253337505.5674842.510111348168520222527.530333370
    Boiler transportationLength (mm)28003500410045004700455057006300700072007840810082308250
    Width (mm)16001600190020002110221025002600270028002860310031003400
    High (mm)20002100231023602470258028002900320033003300340034003550
    Total power consumption (KW)2.36.71113.5192123.526373742455252
    Chimney diameter (mm)25035043045045055065065065080080090012001200
    Shipping weight (T)3.24.74.85.489.7813.415.417.417.423.83031.634.5
    Heating area (m2)3000

    6000

    900

    0

    1200

    0

    1800

    0

    2400

    0

    3000

    0

    3600

    0

    4800

    0

    6000

    0

    7200

    0

    900

    00

    1080

    00

    1200

    00

    Water supply capacity (t)

    715223045607590120150180225270300

    Oil water boiler Vocuum hot water boiler


    Project/modelZKW0.7-85/60-Y(Q)ZKW1.05-85/60-Y(Q)ZKW1.4-85/60-Y(Q)ZKW1.75-85/60-Y(Q)ZKW2.1-85/60-Y(Q)ZKW2.8-85/60-Y(Q)ZKW3.5-85/60-Y(Q)
    Heat medium water capacity (L)4105205687008309801250
    Rated calorific value (Mw/h)0.71.051.41.752.12.83.5
    Rated calorific value6090120150180240300
    Fuel consumptionLight diesel oil (Kg/h)6496128160192256320
    Heavy oil (Kg/h)67.3100134168202269363
    Natural gas (m3/h)165116155193232310387
    City gas (m3/h)77247330412494659824
    Liquefied gas (m3/h)2944587388117146
    Heat ExchangerMaterial/structureStainless steel
    Working pressure (MPa)1
    HeatingMaximum calorific value36547290108144180
    Warm water circulation36547290108144180
    Pressure loss2.2322.62.53.53.3
    Heating outlet (DN)658080100125125133
    Heating area (m2)600090001200015000180002400030000
    Special for hot waterMaximum calorific valuetwenty four3648607296120
    Water supply capacity (m3/h)69121518twenty four30
    Hot water temperature50
    Pressure loss20.61.51.81.51.82
    Water outlet diameter (DN)40656580100100125
    VoltageVoltage (V)220/380
    Total power consumption2.2 (2.6)3.7 (4.1)5.0 (6.5)7.5(9)11 (2.5)15 (16.5)18.5(20)
    Blower power consumption2.23.757.5111518.5
    Oil pump power consumption0.40.41.51.51.51.51.5
    sizeChimney diameter (mm)350350400450500550600
    Long (m)2700320034004050470049005500
    Width (m)1365136516001600160018002020
    High (m)2345240025002580258026302700

    Industrial Water Boiler FAQ:


    Dear friend,

    Thanks for your time for scanning our products.
    We need the following information to confirm the boiler model:
    1.Boiler type: Oil/gas hot water boiler
    2.Boiler capacity?
    3. Boiler pressure?
    4. Boiler application?


    After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.


    It is ok to copy the question and answers directly when sending us the inquiry!


    Welcome you any time!
