    4200 KW Coal Fired Heating Oil Boiler With Air Heat Preheater Easy Installation

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : YY(W)L
    Certification : ISO9001,ISO14001,SGS
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000sets/year
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

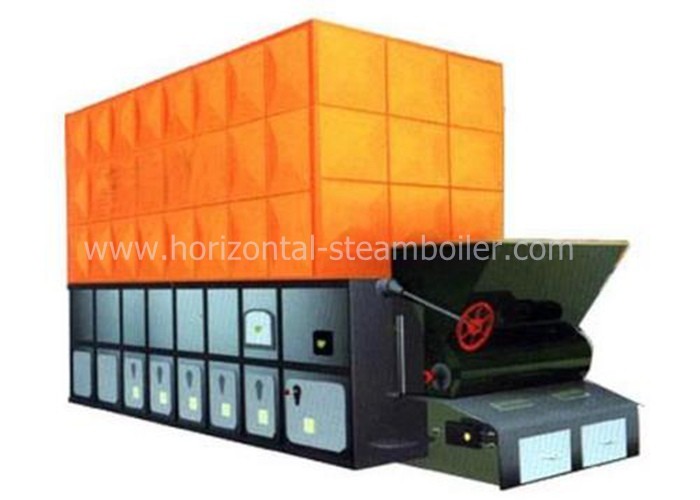

    4200 KW Coal Fired Heating Oil Boiler With Air Heat Preheater Easy Installation

    Easy installation YLW 4200KW coal-fired heating oil boiler with air heat preheater short installation period horizontal


    Heating Oil Boiler Structure:

    1. YLW series Heating Oil Boiler is an assembled forced circulation chain grate boiler. The front part of the main body is the furnace radiation receiving surface, which is composed of two rows of coiled tubes. The rear part is convective flushing heating surface, which is composed of a serpentine bundle.

    2. The Heating Oil Boiler consists of an upper body and a lower chain grate, and the site is combined on site.

    3. The air preheater is placed behind the Heating Oil Boiler.

    The high-temperature flue gas generated by the combustion is sucked away in the furnace;

    The heat is transferred to the convection heating surface through the diverting chamber;

    The air heated by the Heating Oil Boiler in the air preheater is heated into the boiler;

    Then the flue gas is sent by the induced draft fan through the dust remover.;

    The gas goes to the chimney is discharged into the atmosphere.


    Heating Oil Boiler Features:

    1) Easy to install, as long as the upper body and the lower grate are closed, the installation period is short.

    2) The furnace adopts double-tight row of coils, and the heating surface is adequately arranged to reduce the heat load on the surface of the pipe, making the heat transfer oil safer to use.

    3) The medium flow is reasonable. The heat transfer oil is from low (inlet) to high (outlet). The gas generated during operation is difficult to stay in the furnace and can be easily discharged from the system.

    4) The design of the furnace arch is reasonable, the flue gas stays in the furnace for a long time and the combustion is more complete.

    The heating chamber is arranged to turn to the smoke chamber, so that the partition wall avoids the direct flushing of the high-temperature flue gas, and effectively prevents the smoke short circuit caused by the falling off of the smoke-proof wall.


    YLW Heating Oil BoilerDATA SHEET AND DRAWING


    BOILER MODELRated heat power (KW)Rated heat power (x104kcal/h)Design temperature (≤℃)Rated pressure (MPa)Heat efficiency
    (≥%)
    System Power (KW)
    YLW-1400M/AⅡ14001203200.88055
    YLW-1800M/AⅡ18001603200.88063
    YLW-2400M/AⅡ24002003200.88076
    YLW-2800M/AⅡ28002403000.88085
    YLW-3500M/AⅡ35003003200.880105
    YLW-4200M/AⅡ42003603200.880125
    YLW-4600M/AⅡ4600400320180150

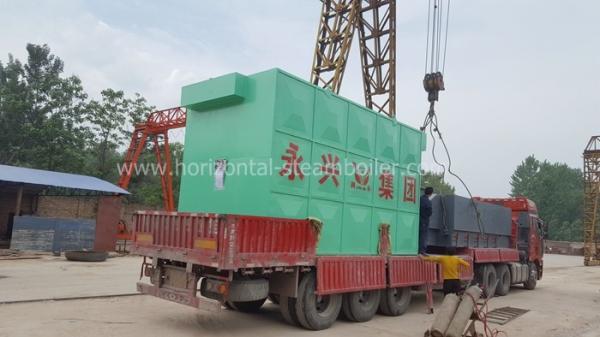

    4200 KW Coal Fired Heating Oil Boiler With Air Heat Preheater Easy Installation

    4200 KW Coal Fired Heating Oil Boiler With Air Heat Preheater Easy Installation


    YLW Heating Oil Boiler FAQ:


    Dear friend,


    Thanks for your time for scanning our products.

    We need the following information to confirm the boiler model:

    1.Boiler type: YLW Heating Oil Boiler

    2.Boiler capacity?

    3. Boiler pressure?

    4. Boiler application?

    After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.


    It is ok to copy the question and answers directly when sending us the inquiry!


    Welcome you any time!


    Ms.Betty
