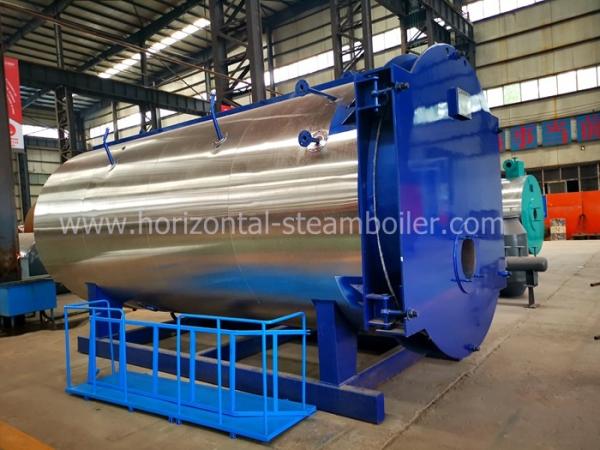

20 tons of fuel gas steam heat boiler oil fired boilers with low
nitrogen emission and high heat exchange efficiency
Company advantage introduction:
Since the establishment of the Yongxing boiler, all the way has
progressed steadily, the tooling equipment has been continuously
upgraded and the production technology has been updated. The gas steam heat boiler is a classic product of Yongxing Boiler, which can meet the needs
of the market and users, and realize intelligent and economical
production.
Why Yongxing gas steam heat boiler can win the favor of millions of users, not only because of the
diverse tooling equipment, the brand awareness of the people, the
perfect after-sales service system, but more importantly, its
obvious energy-saving effect, won the hearts of users.
Compared with similar products, Yongxing gas boiler can save 5-10%
of operating costs.
I, 20 tons of gas steam heat boiler introduction
1. Large corrugated furnace design, good heat exchange efficiency,
NOX<30mg/m3;
2. well-known auxiliary machine configuration, a large horse-drawn
car, stable operation, long service life
- Imported burners from abroad (Italy, Finland, Germany, etc.),
- Double vertical stainless steel water pump (good sealing,
anti-corrosion and anti-rust, long service life),
- PLC touch screen control cabinet (stupid operation, safety,
stability),
- Sub-cylinders (standard parts are entered in and out, if there
are special requirements, they can be explained in advance),
- Water treatment equipment (flow type),
- Double energy-saving device (good energy saving effect, high heat
transfer efficiency)
3. high thermal efficiency, energy saving 5-10% operating costs
II. 20 tons of gas steam heat boiler parameters
| BOILER MODEL | RATED STEAM OUTPUT | WATER CAPACITY | SHIPPING SIZE | SHIPPING WEIGHT | RATED STEAM PRESSURE (Mpa) | RATED TEMPERATURE (°C) |
| (t/h) | (m³) | (mm) | (t) |
| WNS20-1.25-Q | 20 | 17.7 | 7100×2800×3170 | 22 | 1.25 | 194 |
III. 20 tons of gas steam heat boiler gas consumption
In the standard condition, the gas consumption of the gas boiler =
the heat of the boiler, the heat efficiency, the heat value of the
natural gas
20 tons of gas steam boiler gas consumption = 1200000Kcal ÷
8400kcal ÷ 99.8%=1430m3
After calculation, the gas steam heat boiler produces an average of 1 ton of steam boilers, consuming 70-75 m3
of natural gas, and users can calculate boiler fuel costs based on
local gas prices.
IV. 20 tons of gas steam heat boiler advantages:
Environmental protection: The measured minimum emission of NOX can
be less than 80mg/m3, in line with the country's most stringent
environmental standards;
Energy saving: The actual gas consumption of 1 ton of steam is
<60m3, which is far below the industry data;
Over 100,000 cooperative projects have been reached, which can be
field trip!
Yongxing strength: A-class boiler manufacturing enterprise, more
than 60 years of production experience, 86 exporting countries,
more than 200 company employees, more than 600 professional
equipment, more than 5,000 tons of productivity, 100,000 square
meters of production base.
V. Introduction: A brief introduction to the operation site of
several gas steam boilers. Welcome to visit the site to understand
the operation of the boiler.
Steam Heat Boiler datasheet
| Model | Output | Pressure | Temperature | Fuel | Temperature |
| (t/h) | (Mpa) | (ºC) | (ºC) |
| WNS0.5-0.7/1.0/1.25-YQ | 0.5 | 0.7/1.0/1.25 | 170/184/194 | heavy oil/light oil, natural gas/LPG/city gas | 20 |
| WNS0.7-0.7/1.0/1.25-YQ | 0.7 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS0.8-0.7/1.0/1.25-YQ | 0.8 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1-0.7/1.0/1.25-YQ | 1 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1.5-0.7/1.0/1.25-YQ | 1.5 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS5-1.0/1.25/1.6-YQ | 5 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS8-1.25/1.6-YQ | 8 | 1.25/1.6 | 194/204 | 20 |
| WNS10-1.25/1.6-YQ | 10 | 1.25/1.6 | 194/204 | 20 |
| WNS12-1.25/1.6-YQ | 12 | 1.25/1.6 | 194/204 | 20 |
| WNS15-1.25/1.6-YQ | 15 | 1.25/1.6 | 194/204 | 20 |
| WNS20-1.25/1.6-YQ | 20 | 1.25/1.6 | 194/204 | 20 |
FOR QUOTATION FAQ:
Dear friend,
Thanks for your time for scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: Coal/biomass fired thermal boiler
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler
will be suitable for you and we will provide you our product
details and quotation. Thank u.
It is ok to copy the question and answers directly when sending us
the inquiry!
Welcome you any time!
Ms.Betty
