Safety value 2t gas fired boiler efficiency and industrial gas boiler for palm oil processing plant with quality assured

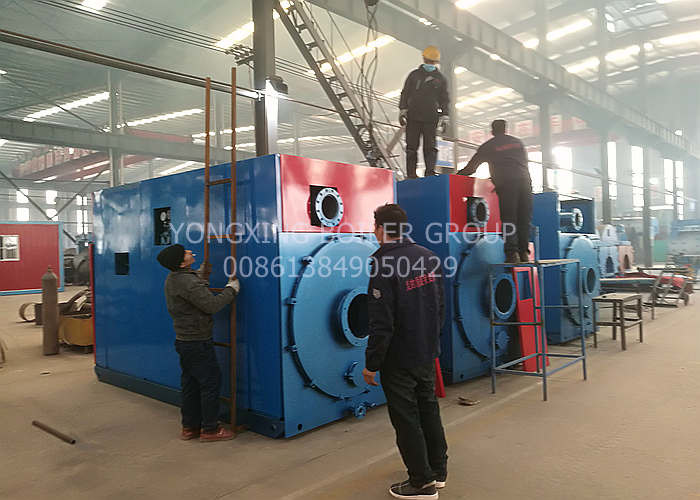

The industrial gas boiler produced by the company adopts a three-return wet-back shell
structure, and the fuel is subjected to micro-positive pressure
combustion in the corrugated furnace. The high-temperature flue gas
flows through three return strokes, which can effectively reduce
the exhaust gas temperature and improve the thermal efficiency of
the equipment. The water inlet of the boiler is equipped with a
water vapor mixing device to increase the temperature of the feed
water, avoid boiling phenomenon caused by excessive local water
temperature, and increase the separation device to further improve
the quality of the steam.
Structural features
1. High furnace strength
The use of the corrugated furnace not only increases the radiation
heat transfer area, but also effectively reduces the expansion
stress of the furnace and improves the combustion efficiency of the
fuel.
2. Advanced welding process
The boiler adopts the process of first expanding and then welding,
eliminating the gap between the pipes and avoiding the corrosion
phenomenon that may occur in the high temperature zone.
3, the smoke box insulation effect is good.
The smoke box adopts double-layer insulation structure, which can
recover the waste heat from the boiler flue gas to the utmost
extent.
4. High gas fired boiler efficiency
A condenser is added to the tail to increase the inlet water
temperature of the boiler, reduce the exhaust gas temperature, and
greatly improve the combustion gas fired boiler efficiency of the industrial gas boiler.
5.Digital manufacturing, beautiful appearance
The front and rear smoke box panels of WNS series fuel/gas boilers
are cut by CNC plasma cutting machine, which is neat and beautiful.
6. The equipment is fully automatic, easy to operate and maintain
WNS series fuel/gas boilers have full-automatic operation
characteristics, and the combustion, water level, temperature and
steam pressure are automatically adjusted and automatically
protected.
Classification and Application
1. According to different fuels, industrial gas boiler can be divided into natural gas boilers, city gas boilers, coke
oven gas boilers, liquefied petroleum gas boilers, and biogas
boilers.
2. Heating, chemical, food, tobacco, textile, printing and dyeing,
feed, medicine, building materials, brewing, rubber, hospital and
so on.
High efficiency gas steam boiler data Sheet
Model | Rated evaporation capacity(t/h) | Working Pressure(Mpa) | Steam Temperature(℃) | Feed Temperature(℃) | Transportation Size(m)(L×W×H) |
WNS1-0.7-Y(Q) | 1 | 0.7 | 170 | 20 | 3.3×1.8×2.1 |
WNS1-1.0-Y(Q) | 1 | 1 | 184 | 20 | 3.3×1.8×2.1 |
WNS2-1.0-Y(Q) | 2 | 1 | 184 | 20 | 4.4×2.1×2.5 |
WNS2-1.25-Y(Q) | 2 | 1.25 | 194 | 20 | 4.4×2.1×2.5 |
WNS4-1.25-Y(Q) | 4 | 1.25 | 194 | 20 | 4.7×2.5×2.9 |
WNS4-1.6-Y(Q) | 4 | 1.6 | 204 | 20 | 4.7×2.5×2.9 |
WNS6-1.25-Y(Q) | 6 | 1.25 | 194 | 20 | 5.9×2.6×3.0 |
WNS6-1.6-Y(Q) | 6 | 1.6 | 204 | 20 | 5.9×2.6×3.0 |
WNS8-1.25-Y(Q) | 8 | 1.25 | 194 | 105 | 5.9×2.8×3.1 |
WNS8-1.6-Y(Q) | 8 | 1.6 | 204 | 105 | 5.9×2.8×3.1 |
WNS10-1.25-Y(Q) | 10 | 1.25 | 194 | 105 | 7.7×2.8×3.1 |
WNS10-1.6-Y(Q) | 10 | 1.6 | 204 | 105 | 7.7×2.8×3.1 |
WNS15-1.25-Y(Q) | 15 | 1.25 | 194 | 105 | 7.0×3.1×3.6 |
WNS15-1.6-Y(Q) | 15 | 1.6 | 204 | 105 | 7.0×3.1×3.6 |
WNS20-1.25-Y(Q) | 20 | 1.25 | 194 | 105 | 8.3×3.4×4.0 |
WNS20-1.6-Y(Q) | 20 | 1.6 | 204 | 105 | 8.3×3.4×4.0 |
Product reference of commercial gas boilers
1 Pakistan WNS1-1.0-Y (Q) Application: Chemical plant
2 Indonesia WNS2-1.0-Y (Q) Application: Building industry
3 Thailand WNS1-1.0-Y (Q) Application: Laundry room
4 Malaysia WNS8-1.25-Y (Q) Application: Chemical industry
5 Indonesia WNS6-1.25-Y (Q) Application: Textile industry
Packing list of commercial gas boilers
1 Boiler main part 1set
2 Imported gas/oil burner 1set
3 Electric control box 1set
4 Valve & Gauge used on boiler main part 1set
5 Feeding water Pump 2set
6 Smoke chimney 1set
7 Water treatment equipment 1set
8 Steam distributor 1set
