High Efficiency Gas Boiler Horizontal Natural Gas Fired Steam Generator Boiler

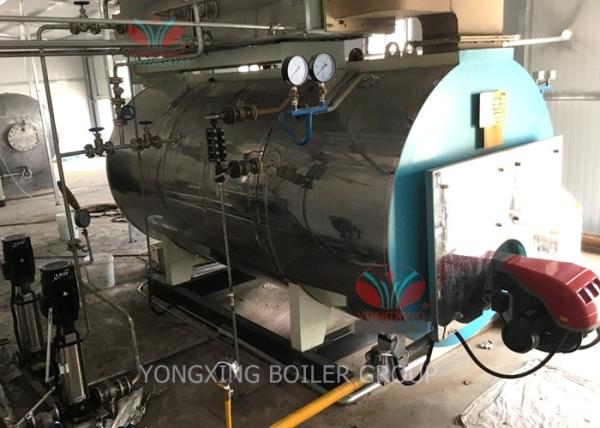

Automatic Running Operation
General Introduction of High Efficiency Gas Boiler
The High Efficiency Gas Boiler is a horizontal three-return fire tube steam boiler, and its fuel
is natural gas, liquefied petroleum gas, liquefied natural gas,
diesel, heavy oil, urban gas, dual fuel, etc. The boiler capacity
is 1t/h-20t/h.
High Efficiency Gas Boiler Application
Pharmaceutical, chemical, light industry, textile mills, building
materials, culture, food, beverage, foam plastics, printing, dyeing
and washing rubber processing, paper products, wood processing,
hotels, clothing, leather, and other industries.
High Efficiency Gas Boiler Features
1. Large capacity combustion chamber design, sufficient water, can
produce enough steam.
2. Equipped with world-renowned brand burner, fuel combustion is
sufficient, performance is stable, and thermal efficiency is high.
3. Corrugated furnace tube design is adopted to increase the
heating area, and the furnace tube can be expanded freely after
heating to improve the service life.
4. Adopt the structure of the wet back, avoid the damage of local
overheating to the boiler, high reliability,
5 with overheating, overvoltage, water shortage, power leakage,
flame out and other safety interlock protection device, high safety
factor, stable and reliable operation.
6. The redundant design of double pressure gauge, water level
gauge, and safety valve ensures high reliability and reduces
maintenance costs and risks.
High Efficiency Gas Boiler technical parameter
| Boiler model | Capacity | Pressure | Steam temp. | Fuel consume. | Thermal efficiency | Weight |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | kg/h | kg/h | m3/h | % | ton |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 65.5 | 67.3 | 84.2 | 91 | 4.3 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 194 | 129.6 | 132.2 | 165 | 92 | 7.2 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 192 | 195 | 250 | 92.1 | 8 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 194 | 256 | 261.9 | 323.6 | 93 | 9.6 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 194 | 318 | 322 | 386 | 93 | 12.5 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 194 | 380 | 390.6 | 450 | 93.2 | 16.5 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 194 | 503 | 517 | 642 | 93.5 | 24.8 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 194 | 628 | 643 | 805 | 93.5 | 26.8 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 194 | 940 | 965 | 1182 | 93.5 | 38 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 194 | 1250 | 1301 | 1597 | 93.5 | 55 |
