    Economical Coal Fired Hot Water Boiler System and Mature Solution Coal Boiler Manufacturers in China

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : HOT WATER BOILER
    Certification : ISO,ASME,ISO9001,CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1-1000 set
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

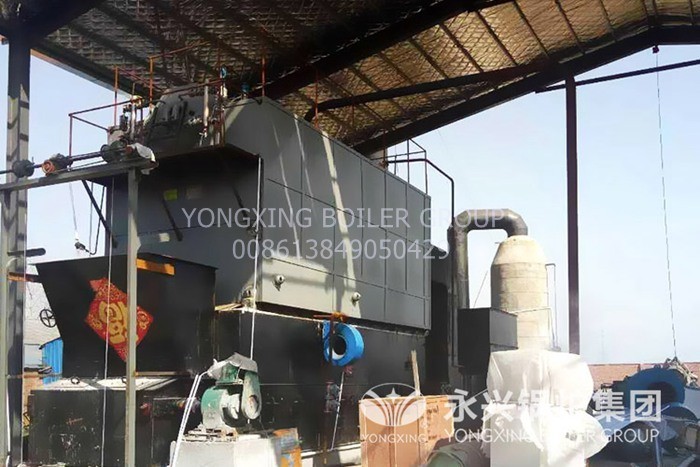

    Economical Coal Fired Hot Water Boiler System and Mature Solution Coal Boiler Manufacturers in China

    Economical Coal Fired Hot Water Boiler System and Mature Solution Coal Boiler Manufacturers in China


    The coal fired hot water boiler are carefully designed according to the needs of various types of enterprises. Biomass hot water boiler has the advantages of quick installation, time saving and material saving, compact structure and small floor space. At present, the industrial hot water boiler produced by the company has high reliability, high thermal efficiency and strong load capacity, and is an advantageous product among similar products in China. The hot water boiler furnace body and the base have been assembled in the factory. After the other parts of the user are in place, it is only necessary to complete the interfaces and auxiliary machines and piping systems to operate.


    Hot Water Boiler System Features
    1.The hot water boiler system, which adopts water-cooled elbow structure. This structure has the characteristics of large heating area and high thermal efficiency. The shell adopts elliptical head and the grate adopts cast iron circular grate for durability and service life long.


    2.The coal fired hot water boiler, the internal heat-receiving pipes are all straight pipes, and there are enough cleaning devices to facilitate the operators to clean the dirt and facilitate the quality inspection.


    3.Horizontal wall pipes are installed on the left and right sides of the horizontal coal-fired hot water boiler, and a wing-shaped flue is formed. A threaded tobacco pipe is arranged in the drum. The use of movable grate can effectively reduce the loss of coal.


    4.The horizontal high efficiency hot water boiler is equipped with a large enough inspection hole at the upper part. The personnel can enter the inside of the furnace body from the inspection hole, which is very convenient for the operator to carry out quality inspection and maintenance work.


    5.Hot water boiler are widely used in factories, hotels, hospitals, office buildings, schools, bathing centers, and other places to meet the needs of bathing, domestic water and heating.


    6.The design and manufacture of coal fired hot water boiler are strictly in accordance with the "Safety Supervision Regulations for Small and Normal Pressure Hot Water Boilers" and JB/T7985-2002 "Technical Conditions for Small Boilers and Atmospheric Pressure Hot Water Boilers" and "Manufacture of Shell Boiler Body" The requirements of Technical Conditions are strictly enforced.


    Economical Coal Fired Hot Water Boiler System and Mature Solution Coal Boiler Manufacturers in China

    Industrial Hot Water Boiler Technical data sheet

    ModelRated
    Power(MW)
    Heating
    Area(m2)
    Supply/Bac Water Temperature℃EfficiencyPressureWeight
    Kg
    Consumption
    kg/h
    Size(m)
    CDZH0.7-90/70-AII0.7600095/7082 %0 Mpa95001542.6×1.7×2.45
    CDZH1.4-90/70-AII1.412000112003083.4×2.2×2.6
    CDZH2.1-90/70-AII1.418000155004633.6×2.4×2.9
    CDZH2.8-90/70-AII1.824000165006174.3×2.5×3.1
    CDZL0.7-90/70-AII2.16000125001544.0×1.7×2.6
    CDZL1.4-90/70-AII1.412000178003085.0×2.2×2.8
    CDZL2.8-90/70-AII2.824000278006176.0×2.5×3.4
    CDZL4.2-90/70-AII4.236000320009267.2×2.6×3.8


    Auxiliary list sheet

    Auxiliary components
    Auxiliary SystemParts details
    Water supply systemsoft water, demineralized water system, deaerator, feed water pump, water tank, ammonia adding device, dosing device
    Steam (hot water) systemSteam separator (water) cylinder, desuperheater
    Fuel supply systemCoal machine, belt coal conveyor, crusher, vibrating screen electronic belt scale, electromagnetic iron remover, double pear type unloader, pre-furnace coal feeder, etc
    Smoke systemBlower, induced draft fan, chimney, etc.
    Sewage (steam) system, row, row, sampler, silencer
    Electronic control systemGeneral control, PLC control, DCS control
    Other equipment in the boiler roomHeat exchange station, circulation pump, decontamination unit, etc.
    Flue gas purification systemDust collector, desulfurization device, denitration device, etc.
