0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler

    Buy cheap 0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler from wholesalers

    Buy cheap 0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler from wholesalers
    • Buy cheap 0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler from wholesalers
    • Buy cheap 0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler from wholesalers

    0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : WNS6-1.25-YQ
    Certification : ISO9001,ISO14001,A-CLASS,SGS,BV
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 1000SETS/MONTH
    Delivery Time : 15-30DAYS
    • Product Details
    • Company Profile

    0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler

    Gas Fired Packaged new gas boilers prices with European Burner for Garment Factory


    new gas boilers prices Boiler technology

    1, The well-designed center's regenerative three-return combustion chamber and optimized heat transfer surface design ensure optimum heat transfer and make the boiler thermal efficiency more than 90%.
    2, high-quality burner, fuel utilization rate of more than 99.9%, smoke emissions are clean, no pollution.
    3, high-quality insulation layer to ensure that even in the cold outdoors, the surface of the furnace body heat dissipation is less than 1%.
    4, Self-control combustion: fully automatic burner and monitoring system to reduce boiler maintenance management and achieve precise control of the operation process.
    5, New gas boilers prices Integrated configuration: According to the integrated configuration standard, all the accessories are assembled and factoryized, which makes the on-site installation more convenient and faster.


    New gas boilers prices technical data sheet as follow (for reference only) :

    Project, unit and data, modelWNS0.5-1-Y(Q)WNS1-1-Y(Q)WNS2-1-Y(Q)WNS3-1-Y(Q)WNS4-1.25-Y(Q)WNS5-1.25-Y(Q)WNS6-1.25-Y(Q)WNS8-1.25-Y(Q)WNS10-1.25-Y(Q)
    Rated evaporationt/h0.5123456810
    Rated steam pressureMPa11111.251.251.251.251.25
    Rated steam temperature°C184184184184194194194194194
    Rated feed water temperature°C202020202020105105105
    Total heated areaM215.430.760.990.5124.7128.3136.3187217.6
    exhaust temperature°C230230230230220220220220220
    Gas boiler efficiency%91.7891.4491.7792.1492.392.0392.1591.8792.29
    Applicable fuel/Diesel, heavy oil, natural gas, liquefied gas, city gas
    Diesel oil.Heavy oil.Natural gas.City gas
    Ringman black/<1 level
    Fuel consumptionDieselKg/h31.563125.5189253315376501628
    heavy oilKg/h33.0266.99131.72197.55263.12328.55394.26525.57680
    natural gasNm3/h37.575151225300375449600750
    Liquefied gasNm3/h12.6625.3850.6876.01101.24126.41151.7202.2252.8
    City gasNm3/h7515030245060075089812001500
    Boiler weightEmpty furnaceT2.74.877.3210.112.8614.715.318.621.3
    Full of waterT3.76.412.816twenty two24.725.532.538
    using electricV380V/50Hz
    Main steam valve diameter (DN)Mm506565100100125125150150
    Safety valve diameter (DN)Mm5050×250×250×250×280 5080 5080×280×2
    Drain valve diameter (DN)Mm404040404040404040
    Feed pump modelSSJGGC1JGGC2JGGC2JGGC4JGGC4JGGC6JGGC8JGGC12JGGC12
    Chimney caliberMmΦ316Φ316Φ400Φ530Φ530Φ530Φ530Φ680Φ680

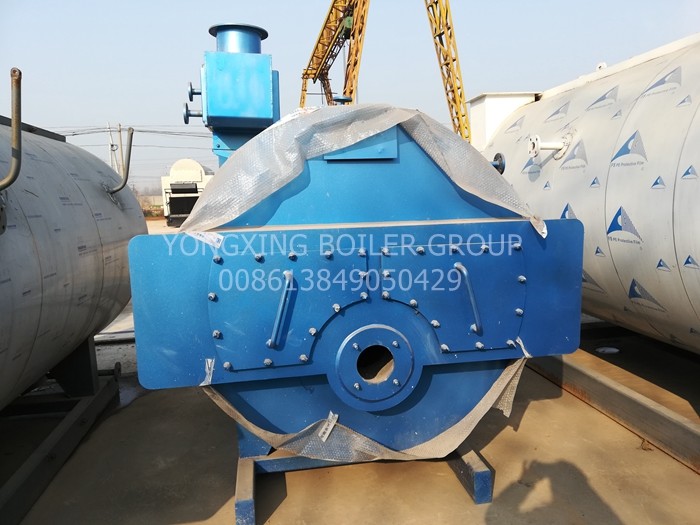

    new gas boilers prices in factory work shop :

    0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler

    Product Tags:

    oil powered boiler



    fuel oil boiler


    Quality 0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler for sale
