    10 bar Gas Fired Steam Boiler Condensing Small Water Tube Boiler For Food Processing

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : WNS3-1.25/1.6-YQ
    Certification : ISO9001,ISO14001,A-CLASS,SGS,BV
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 1000SETS/MONTH
    Delivery Time : 15-30DAYS
    • Product Details
    • Company Profile

    10 bar Gas Fired Steam Boiler Condensing Small Water Tube Boiler For Food Processing

    Large steam capacity condensing gas fired steam boiler for food processing


    CONDENSING GAS FIRED STEAM BOILER


    Food machinery industry: supporting equipment for tofu machine, boiled soybean milk, steamer, sterilization tank, packaging machine, coating equipment, sealing machine, etc.
    Biochemical industry: supporting the use of fermenters, reactors, sandwich pots, mixers, emulsifiers and other equipment.


    1. Boiler design ,manufacture according China A-class level .Follow China GB standard strictly which will be ratified through government,field inspection from related department for each boiler before leaving workshop to ensure safe and stable quality.
    2. Boiler has THREE return system and FOUR return system for latesd design.Flame Burning in big combustion chamber with micro-positive pressure ,multi fuel support ,such as:Oil,gas and alcohol-based fuel.
    Three return capacity will get to 15tons for WNS series.
    Four return save energy largely ,but capacity shall less than 4ton/h .
    When boiler bigger than 15ton ,we will design it into SZS double drums,horizontal with D-type combustion chambers.
    3. Inner chamber of boiler use corrugated furnace and thread pipes to increase the heating surface and used to the expansion.

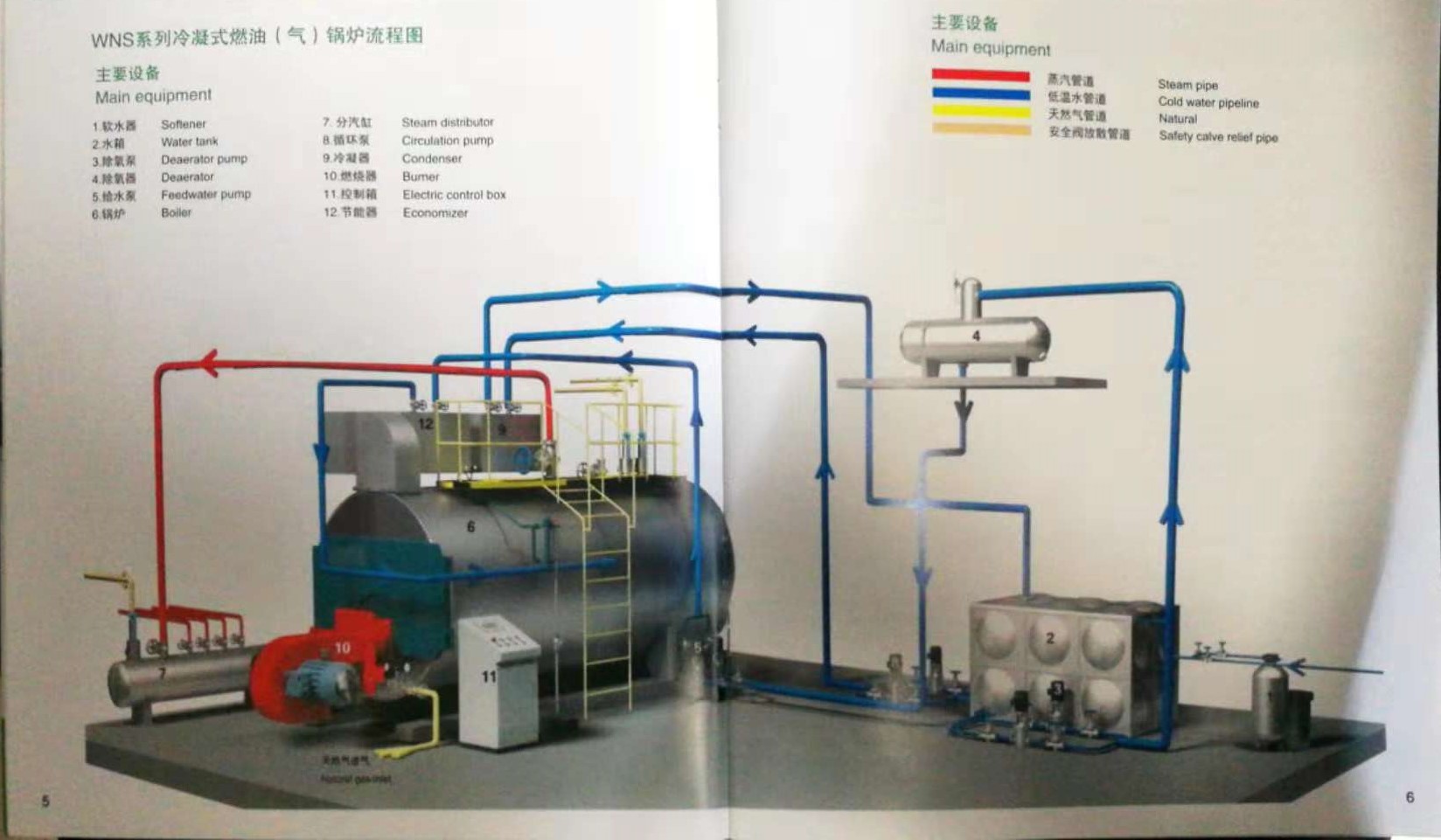

    Condensing Gas Fired Steam Boiler Main Equipment :
    1. Water softener
    2. Water tank
    3. Deaerator pump
    4. deaerator
    5. Feedwater Pump
    6. Boiler
    7. Steam Distributor
    8. Circulating Pump
    9. Condenser
    10. Burner

    5 ton industrial gas diesel oil fired steam boiler for pharmaceutical industry

    RatedRated workingRated steamSuitableFeed water
    Modeloutputpressuretemperaturefuel kindtemperature
    (t/h)(Mpa)(ºC)(ºC)
    WNS0.5-0.7/1.0/1.25-YQ0.50.7/1.0/1.25170/184/194heavy oil/light oil,natural gas/lpg/city gas20
    WNS0.7-0.7/1.0/1.25-YQ0.70.7/1.0/1.25170/184/19420
    WNS0.8-0.7/1.0/1.25-YQ0.80.7/1.0/1.25170/184/19420
    WNS1-0.7/1.0/1.25-YQ10.7/1.0/1.25170/184/19420
    WNS1.5-0.7/1.0/1.25-YQ1.50.7/1.0/1.25170/184/19420
    WNS2-1.0/1.25/1.6-YQ21.0/1.25/1.6184/194/20420
    WNS3-1.0/1.25/1.6-YQ31.0/1.25/1.6184/194/20420
    WNS4-1.0/1.25/1.6-YQ41.0/1.25/1.6184/194/20420
    WNS5-1.0/1.25/1.6-YQ51.0/1.25/1.6184/194/20420
    WNS6-1.0/1.25/1.6-YQ61.0/1.25/1.6184/194/20420
    WNS8-1.25/1.6-YQ81.25/1.6194/20420
    WNS10-1.25/1.6-YQ101.25/1.6194/20420
    WNS12-1.25/1.6-YQ121.25/1.6194/20420
    WNS15-1.25/1.6-YQ151.25/1.6194/20420
    WNS20-1.25/1.6-YQ201.25/1.6194/20420



    Gas fired steam boiler quality control samples .All boiler will be weld as the sample quality.
