    Chain Grate Stoker Thermal Oil Boiler Horizontal Thermal Flooding Boilers

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : YY(W)L
    Certification : ISO9001,ISO14001,SGS
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000sets/year
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    Chain Grate Stoker Thermal Oil Boiler Horizontal Thermal Flooding Boilers

    YLW/YLL chain grate stoker horizontal industrial coal fired thermal oil heater manufacturers for textile and food mill


    Features:

    1. The coal-fired heat-conducting oil furnace produced by the company adopts high-quality light-weight insulation and refractory materials to minimize surface heat loss and improve the operating environment.

    2. The coal-fired heat-conducting oil furnace can be operated at a very low pressure and can obtain a higher operating temperature.

    3, using the company's core technology, coal-fired thermal oil furnace can be a stable heating of the heat carrier and precise temperature control.

    4.The thermal efficiency of coal-fired thermal oil furnaces can be maintained at very high levels under various levels of load.

    5.The coal-phase heat transfer oil furnace has excellent liquid phase transport function, and the heat carrier pressure is 70 times smaller than the saturated vapor pressure of water at 300 °C.


    Product advantages:

    1. Furnace body adopt unique patent technology, add top coiler, absorb flue gas waste heat and protect furnace top, so this improves service life of boiler.

    2.Fuel burn layer and adiabatic combustion, design patent energy-saving arch, burn sufficiently and improve thermal efficiency of boiler better.

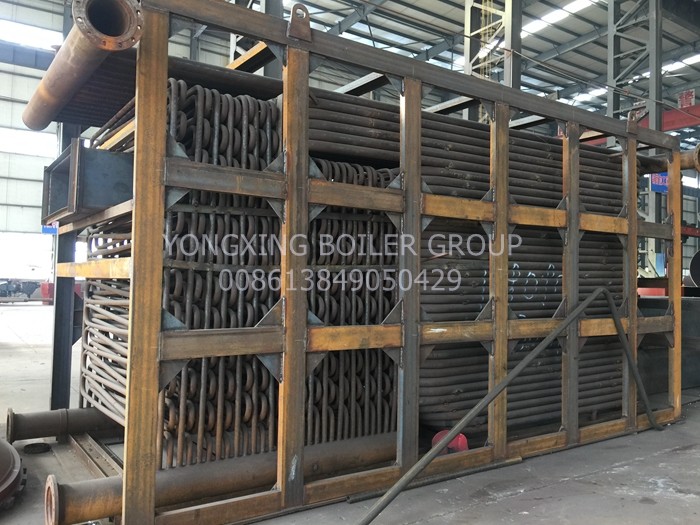

    3. bi-coil design, safe & efficient heat conduction
    4.intelligent controller with PLC and touch screen, fully automatic operation
    5. well sealed boiler body & piping

    Chain Grate Stoker Thermal Oil Boiler Horizontal Thermal Flooding Boilers

    VERTICAL YGL HAND FEED COAL/WOOD FIRED THERMAL OIL HEATER DATA SHEET

    Model dataYGL-120MAYGL-240MAYGL-350MAYGL-500MAYGL-700MAYGL-1000MAYGL-1200MAYGL-1400MA
    Rated thermal power Kw120240350500700100012001400
    Thermal efficiency%7373737373737373
    Design pressure Mpa0.60.60.60.60.60.60.60.6
    Medium higher temperature °C320320320320320320320320
    Cycle oil m3/h12.520406080100100100
    Piping connection diameter DN508080100100125125125
    Full system installed capacity Kw8101812225353535
    Coal burning typeⅡ,Ⅲ soft coal,BIOMASS PELLET
    Coal weight Kg/h285680100155185240290
    Boiler SizeDiameter mm12151500170017001960205021602290
    Height mm23102750306034753805441547605445
    Total weight Kg25003200480053005800620067007300

    VERTICAL YLL TYPE CHAIN GRATE AUTOMATIC COAL FEEDER THERMAL OIL HEATER DATA SHEET

    Model dataYLL-700MAYLL-1000MAYLL-1200MAYLL-1400MAYLL-2000MAYLL-2800MA
    Rated thermal power Kw70010001200140020002800
    Thermal efficiency%92
    Design pressure Mpa1
    Medium higher temperature °C350
    Cycle oil m3/h6080100100160180
    Piping connection diameter DN100100125125150150
    Full system installed capacity Kw25.931.543.4543.4562.7570
    Coal burning typeⅡ,Ⅲ soft coal,BIOMASS PELLET
    Coal weight Kg/h145180225270392535
    Boiler SizeL mm471047104710471058306390
    W mm208021702280228024502870
    H mm403346084855543058263450
    Total weight Kg108861181212980139352168028000

    YLW HORIZONTAL CHAIN GRATE TYPE THERMAL OIL BOILER HEATERS DATA SHEET

    projectUnitYLW-1400MAYLW-2000MAYLW-2400MAYLW-3000MA
    (120*104Kcal)(170*104Kcal)(200*104Kcal)(258*104Kcal)
    Rated thermal powerKW1400200024003000
    Thermal efficiency%≥73≥73≥73≥73
    design pressureMpa1.11.11.11.1
    Medium maximum temperature320320320320
    Circulating oilm3/h100160180200
    Piping connection caliberDN125150150150
    Full system installed capacityKW49.5757587
    Fuel typeMAMAMAMA
    Coal consumptionkg/h300400470565
    Dimensions (length * width * height)mm4703*2270*43005820*2270*39505820*2270*42596790*2270*4395
    total weightkg20500215002460033760

    Chain Grate Stoker Thermal Oil Boiler Horizontal Thermal Flooding Boilers
