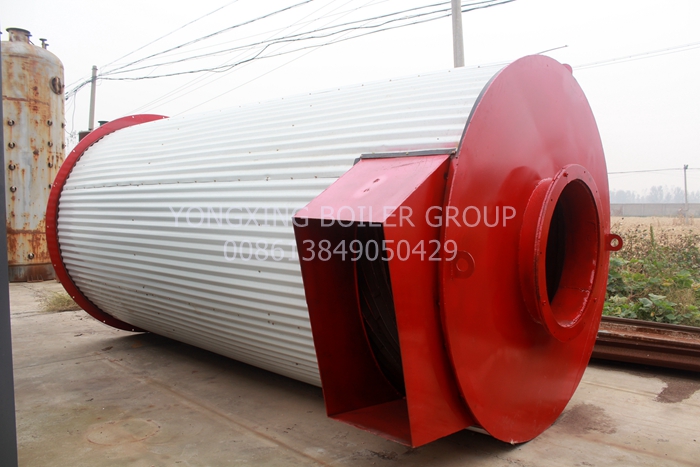

1400kw environmental protection light oil fired thermal fluid heater With Factory Wholesale Price

YYW series gas heat conduction oil furnace structure introduction:

Performance characteristics:

1, Obtain low-pressure high-temperature heat medium, easy to adjust, uniform heating, can meet the precise process temperature.

2. Liquid phase circulation heating, no condensation heat loss, heat supply system high efficiency.

3. The working medium is subject to heat and heat release and the temperature rises and falls to the volume change, and there are compensation technical measures in the system.

4. Technical measures to strictly control the air, moisture and other low volatile content in the working medium before circulating heating.

5. Applies to:

Chemical industry - oleochemical, polymerization industry, reaction tank, distillation, concentration.

Plastic industry - plastic guns, extrusion and shaping.

Textile industry - resin setting machine, dyeing machine, drying room, high temperature machine, roller machine.

Rubber industry - vulcanization heating of rubber.

Food industry - cooking, drying, vegetable oil refining.

Forest industry--heating and setting of splint, Pauli board and fiberboard.

Paper industry - multi-layer cardboard for packaging cartons, drying, drying.

Others - heating of metal plating baths, coating condensation, drying, distillation in the pharmaceutical industry, reduction, concentration, dehydration, etc.

thermal oil heater features

1. It can obtain higher working temperature (≤320°C) under lower operating pressure (<0.5Mpa), and reduce the pressure rating of heat equipment, which can improve the safety of the system.

2, heating evenly and softly, temperature conditioning selects PID self-tuning intelligent control, high temperature control accuracy (≤ ± 1 ° C), can meet the strict requirements of high technical specifications.

3, small size, small footprint, equipment in the use of thermal equipment adjacent to coal-fired coal slurry heat transfer oil boiler technical parameters, no need to set up a boiler room, do not need to set up a dedicated operation, can reduce equipment funding and operating costs, recovery of capital .

4. The operation control and safety monitoring equipment are completely complete, the heating process is fully automatic, the operation is simple and convenient, and the equipment is convenient.

5, closed loop heating, small heat loss, significant energy-saving effect, no environmental pollution, the use of a wide range.

6, with low temperature type (≤180 °C), medium temperature type (≤300 °C), full product specifications, user selection scale.

Advantages

1. Easy to install, as long as the upper body and the lower combustion chamber are closed, the installation period is short.

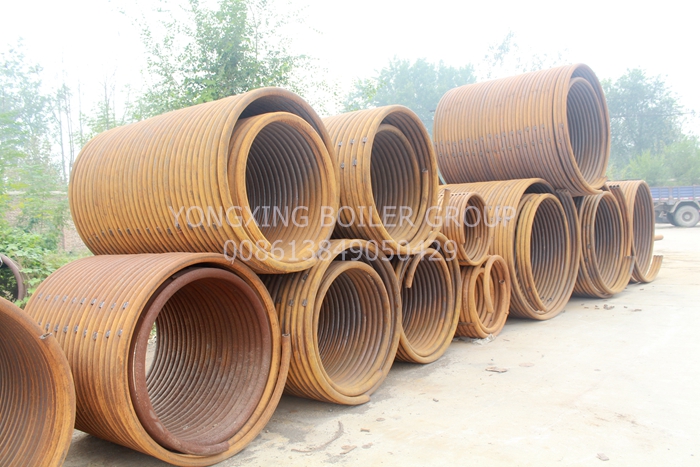

2. The heated surface adopts a close-packed disc tube, and the heated surface is arranged sufficiently to reduce the heat load on the surface of the tube, so that the heat transfer oil is safer to use.

3. The medium flow is reasonable. The heat transfer oil field is low (imported) to (export), and the gas generated during operation improves the thermal efficiency of the boiler.

4. The fuel is adiabatic in the combustion chamber, which makes the combustion fire easier, burns more fully, and better improves the thermal efficiency of the passage.

5. The top of the boiler is equipped with a densely packed coil, which can better protect the top of the furnace and avoid the burning of the top of the furnace.

Thermal oil heater technical data as follows

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.
