    Low Nitrogen Three Pass Fire Tube Boiler Food Industry Low Pressure Steam Boiler

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : WNS8-1.25-YQ
    Certification : ISO9001,ISO14001,A-CLASS,SGS,BV
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 1000SETS/MONTH
    Delivery Time : 15-30DAYS
    • Product Details
    • Company Profile

    Low Nitrogen Three Pass Fire Tube Boiler Food Industry Low Pressure Steam Boiler

    Low Nitrogen Oil Refinery Plants Oil Fired Gas Fired Steam Boiler low pressure boiler


    low pressure boiler Technical advantages
    1. The control system is an intelligent liquid crystal control system with automatic water supply, automatic temperature setting, combustion start and stop, cycle control and automatic fault detection. It is easy to operate and safe.
    2. Optional imported high-quality burner, full combustion, smokeless dust-free noise, good environmental protection effect.
    3. The structure of the furnace body is reasonable, the heating area is large, the heat efficiency is high, the water supply is sufficient, the floor space is small, compact and beautiful.
    4. The inner tank has an overall hot-dip galvanizing treatment, the water quality is pure and hygienic, can meet some high standard hot water demand.
    5. The furnace of the bedroom is a three-pass full wet back structure, using a large furnace, large smoke tube design, increase the heat absorption of the furnace, the flame is burned in the large furnace, the combustion heat load is low.


    Low pressure boiler Scope of application
    The products are widely used in: petrochemical, rubber, clinker, food, paper, textile, printing and dyeing, chemical, pharmaceutical and other industries, and can be used for cooking, heating, boiling water, and other domestic hot water for enterprises, hotels,and other service industries. .


    Low pressure boiler Boiler shipping list



    WNS Series Horizontal Fuel/Gas Steam Boiler - Factory Configuration List


    YONGXING BOILERWNS series horizontal fuel/gas steam boiler configuration listpage 1
    1 page in total
    Serial numberDrawing number or model numberproduct namePlace of originQuantityRemarks
    OneBoiler host
    1YXQ6530-0-0Boiler hostFactory1lifetime warranty
    twoValve instrumentation and safety accessories
    1Y-150Pressure gauge 0~2 5MPa 2 Level 5Zhengzhou2One year replacement
    2X14W-1 6TPressure gauge three-way cockZhengzhou2One year replacement
    3GGT12 01Pressure gauge trapFactory1lifetime warranty
    4A48H-1 6CFully spring safety valve PN1 6 DN80Zhengzhou2One year replacement
    5J44H-1 6CMain steam valve PN1 6 DN80Zhengzhou1One year replacement
    6J44H-1 6CSecondary steam valve PN1 6 DN32Zhengzhou1One year replacement
    7J4H-1 6CGlobe valve PN1 6 DN32Zhengzhou1One year replacement
    8J41H-1 6CGlobe valve PN1 6 DN32Zhengzhou2One year replacement
    9J41H-1 6CCheck valve PN1 6 DN32Zhengzhou1One year replacement
    10X49X-25-350Water table PN1 6 DN25 L=350Zhengzhou2One year replacement
    11P48H-1 6QSewage valve PN1 6 DN50Zhengzhou2One year replacement
    12YCW6223-2-0Drum discharge pipe φ57×3 5Zhengzhou1One year replacement
    13J41H-1 6CBall valve PN1 6 DN25Zhengzhou4One year replacement
    14SZB-20Electrode type water level controller PN1 6 DN25Nanjing2One year replacement
    15YMK-50-Cpressure controllerNanjing3One year replacement
    16WZB-210ThermocoupleNanjing1One year replacement
    17GB6780-86Bolt M12×55Jiang Su72One year replacement
    18GB6170-86Nut M12Jiang Su72One year replacement
    19YX2010BSVulnerable partsHebei6Five years of standby
    20YX2010GJSafety chain protectionNanjing1lifetime warranty
    threeAuxiliary machine
    1YXQ6020-0-0chimneyFactory1lifetime warranty
    2YXQ6020-0-0Chimney elbowFactory1lifetime warranty
    3YXQ6020-0-0Sub-cylinderFactory1lifetime warranty
    4BT180 (BGN200P)BurnerItaly, Decker1One year replacement
    5XD-1Fully automatic computer controllerNanjing1One year replacement
    6Automatic water treatmentUnited States1One year replacement
    7Water tankFactory1lifetime warranty
    81(1/2)GC5×7Feed pumpZhengzhou1

    One year replacement


    Low pressure boiler technical data sheet as follow (for reference only) :


    Project, unit and data, modelWNS0.5-1-Y(Q)WNS1-1-Y(Q)WNS2-1-Y(Q)WNS3-1-Y(Q)WNS4-1.25-Y(Q)WNS5-1.25-Y(Q)WNS6-1.25-Y(Q)WNS8-1.25-Y(Q)WNS10-1.25-Y(Q)
    Rated evaporationt/h0.5123456810
    Rated steam pressureMPa11111.251.251.251.251.25
    Rated steam temperature°C184184184184194194194194194
    Rated feed water temperature°C202020202020105105105
    Total heated areaM215.430.760.990.5124.7128.3136.3187217.6
    exhaust temperature°C230230230230220220220220220
    Gas boiler efficiency%91.7891.4491.7792.1492.392.0392.1591.8792.29
    Applicable fuel/Diesel, heavy oil, natural gas, liquefied gas, city gas
    Diesel oil.Heavy oil.Natural gas.City gas
    Ringman black/<1 level
    Fuel consumptionDieselKg/h31.563125.5189253315376501628
    heavy oilKg/h33.0266.99131.72197.55263.12328.55394.26525.57680
    natural gasNm3/h37.575151225300375449600750
    Liquefied gasNm3/h12.6625.3850.6876.01101.24126.41151.7202.2252.8
    City gasNm3/h7515030245060075089812001500
    Boiler weightEmpty furnaceT2.74.877.3210.112.8614.715.318.621.3
    Full of waterT3.76.412.816twenty two24.725.532.538
    using electricV380V/50Hz
    Main steam valve diameter (DN)Mm506565100100125125150150
    Safety valve diameter (DN)Mm5050×250×250×250×280 5080 5080×280×2
    Drain valve diameter (DN)Mm404040404040404040
    Feed pump modelSSJGGC1JGGC2JGGC2JGGC4JGGC4JGGC6JGGC8JGGC12JGGC12
    Chimney caliberMmΦ316Φ316Φ400Φ530Φ530Φ530Φ530Φ680Φ680

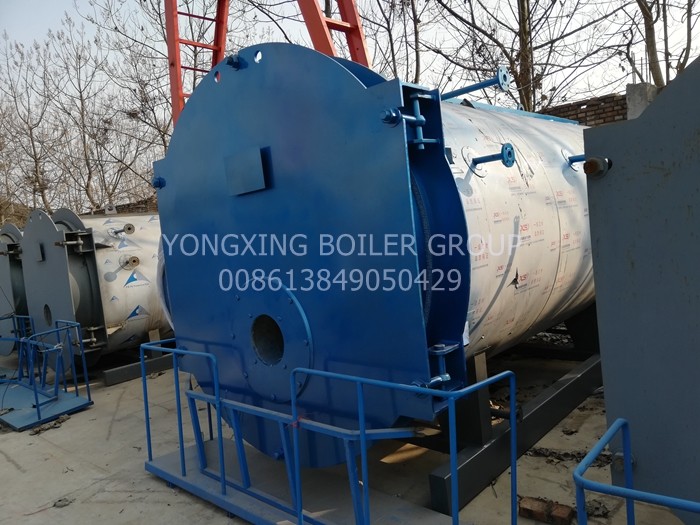

    Low pressure boiler in factory work shop :

    Low Nitrogen Three Pass Fire Tube Boiler Food Industry Low Pressure Steam BoilerLow Nitrogen Three Pass Fire Tube Boiler Food Industry Low Pressure Steam Boiler
