    Automatic Oil Fired Steam Boiler Industrial Water Tube Boiler PLC Control System

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : WDR0.72MW Electric steam boiler
    Certification : ISO9001,ISO14001,A-CLASS,SGS,BV
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 1000SETS/MONTH
    Delivery Time : 15-30DAYS
    • Product Details
    • Company Profile

    Automatic Oil Fired Steam Boiler Industrial Water Tube Boiler PLC Control System

    A-Class manufacturer automatic electric central heating boiler with good price

    Horizontal electric heating steam boiler
    WDR series fully automatic horizontal electric heating steam boiler adopts the separation mode of electric control cabinet of furnace body to avoid the influence of thermal aging of electrical components on the normal operation of equipment.
    The electric heat pipe is made of high-quality products with a normal service life of about 20,000 hours and a thermal efficiency of nearly 99%. It is characterized by quiet and clean operation and will not emit nitrogen and oxygen compounds into the atmosphere.

    The boiler adopts PLC control system, with all operation buttons, all indicator lights, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning.

    Advantages
    1. An Electric Heating Steam Boiler is a pressure vessel device that converts electrical into heat and then heat the water to produce steam.
    2. The piezoelectric furnace with a water storage capacity of 30L or more at the highest safe water level is an electric heating boiler;
    3, The Electric Heating Steam Boiler adopts Japan Fuji temperature control instrument, using PID self-tuning intelligent temperature control technology, the control precision can reach the temperature of about ±1 °C, and accurately control the temperature range used;
    4. The heating main power supply uses solid-state module non-contact switch circuit, adapt to frequent switching, and no interference to the power supply network. And has anti-dry burning.
    5. Electric Heating Steam Boiler Can be designed according to user requirements to add hot oil cooling system to meet the production process requirements of rapid cooling after heating;
    6. To achieve centralized control of the boiler.
    According to this automated system, the automatic timing switching of the boiler in the boiler room is realized, thereby realizing the circulating operation of the gas boiler, which not only can realize the energy saving of the boiler heating, but also can effectively extend the service life of the boiler.

    Electric Heating Steam Boiler data sheet as follow (for reference only) :

    WDR Series Electric Heating Steam Boiler - Technical Parameter
    ModelWDR0.75-1.0WDR1-1.0WDR1.5-1.0WDR2-1.0WDR3-1.0WDR4-1.25
    Projectunit
    Rated evaporationt/h0.7511.5234
    Fixed work stressMPa111111.25
    Saturated vapor temperature°C184184184184184193
    input powerKW5407201080144021602880
    Input CurrentA81010801620216032404320
    Rated voltageV380
    Power × number of groupsKW×P36×1536×2036×3036×4036×6036×80
    a main steam valve caliberDN4040656580100
    b safety valve caliberDN2×402×402×402×402×402×40
    c inlet diameterDN404040404040
    d drain valve caliberDN404040404040
    Boiler dimensionsLMm280029503450350039504100
    L1Mm240025003050288032003550
    WMm180019002180200021002480
    W1Mm155016001430188019802120
    HMm155016002100250026502980
    H1Mm130013501850190021002200
    Control cabinet sizeA longMm120012001500150018002100
    B wideMm500600600600600600
    C highMm18008002000200022002200
    weightKg230028503220355041005200

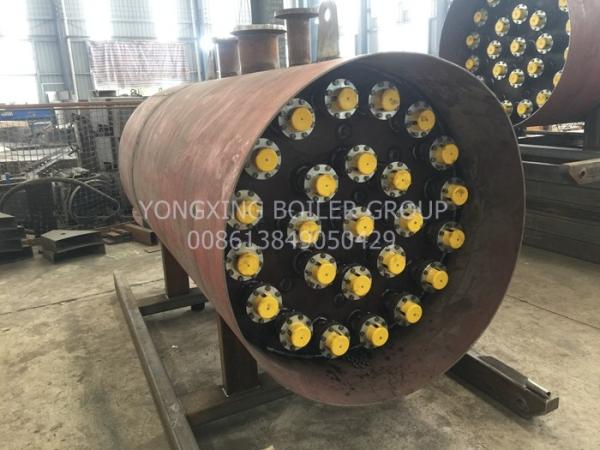

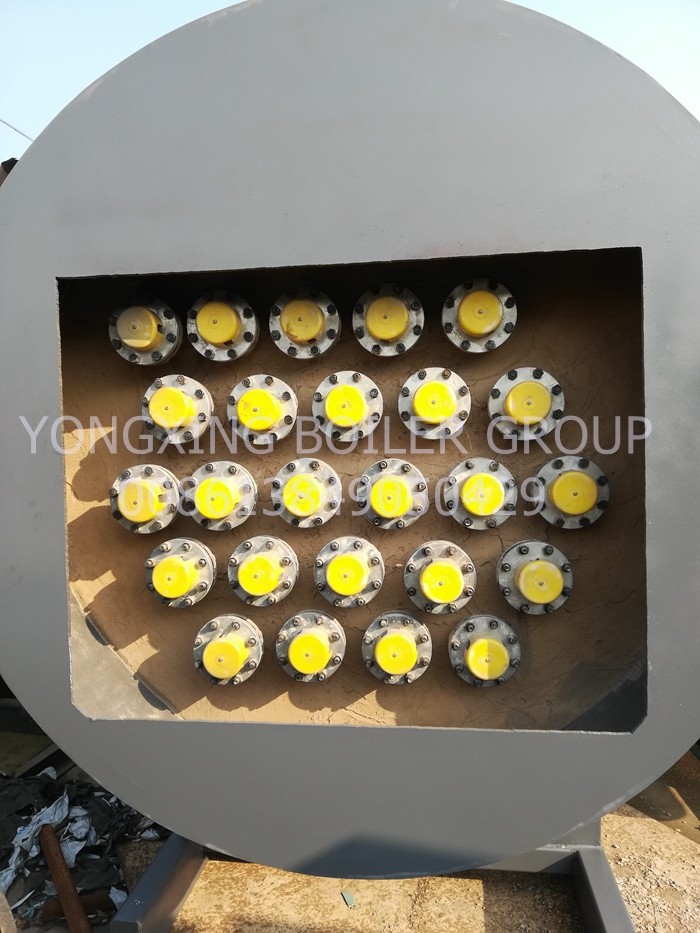

    Electric Heating Steam Boiler in factory work shop :
    Automatic Oil Fired Steam Boiler Industrial Water Tube Boiler PLC Control SystemAutomatic Oil Fired Steam Boiler Industrial Water Tube Boiler PLC Control System
