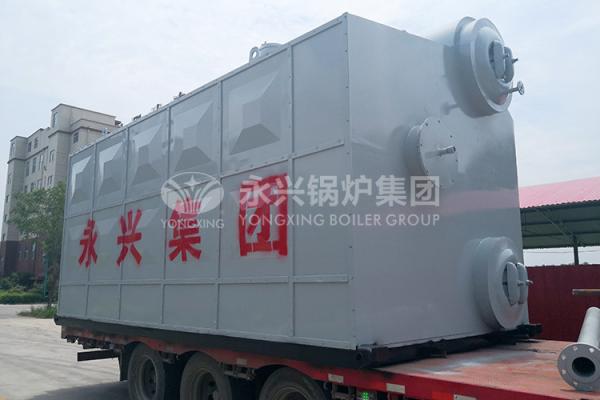

Automatic and environmental protection SZS steam boiler with fuel oil (gas) for architectural material industry

Product structure:
1. Three-way structure: the international popular pot shell three-way, full wet back structure, combustion chamber large volume design, make the combustion more fully.
Micro positive pressure in the fuel in the furnace combustion, high temperature along the furnace flue gas by back into the combustion chamber back turn 180 ° into the first flue tube bundle, the compression type smoke box before you turn 180 ° in the second, through the convective heat transfer back into the atmosphere.
2. Corrugated furnace bladder: the combustion chamber adopts full corrugated furnace bladder structure, which not only strengthens the disturbance of smoke, but also increases the radiation heat transfer area;
It not only increases the rigidity of the furnace, but also effectively reduces the expansion stress of the furnace.
It not only enhances the heat transfer effect, but also promotes the combustion of fuel in the furnace.
3. Unique smoke pipe and pipe plate welding process: the use of pre-expansion and then full welding, and then expansion of the advanced technology, not only prevent pipe gap corrosion, but also enhance the welding strength;
The screw pipe with high heat transfer coefficient is adopted to strengthen convection heat transfer effect, reduce smoke discharge temperature and improve boiler heat efficiency.
4. Symmetrical movable hinged front and rear smoke doors: easy to open, repair and clean.

SZS series gas steam boiler product use:

Industrial fields: steam supply for thermal power plant, shipyard, petrochemical and other precision instrument manufacturers, pharmaceutical, biological engineering, food industry baking and other processes;
Where the factory needs hot water.
Living area: steam for hotel laundry room, steam disinfection hospital equipment, dining room, steam beauty use sauna beauty salon;
Homes, schools, office buildings, hotels and other areas requiring heating;
Hotel hotel bath and other hot water supply.

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.
