    High Efficiency Natural Gas Fired Boiler PLC Control Fire Tube Boiler

    10ton gas fired steam boiler, fully automatic operation technology, with high and low water level alarm , very low water level alarm, automatic protection functions of ultra high pressure, flameout and others .


    Yongxing 10ton gas fired steam boiler boiler design has a large opening door, three-return structure, the burner is assembled on the front smoke cover, and the body is arranged in the heating surface and the combustion chamber part of the fox demon. The structure is reasonable, compact and low steel consumption.


    The furnace is made of offset corrugated furnace, the insulation layer is made of new light weight thermal insulation material, the outer packaging is made of thin stainless steel, or the thin plate. the shape is rectangular parallelepiped. Its function, weight, structure size, appearance and capacity of the boiler are all with significant forward-looking and aesthetic sense. In addition, the boiler water supply equipment is on the right side of the boiler.As a whole with the boiler, no additional foundation is required.


    Specifications of a 10 ton gas fired steam boiler:

    Boiler model: WNS10-1.25-Q

    Rated evaporation: 10t/h

    Rated working pressure: 1.25MPa

    Large fuel consumption: 668.6 nm3 / h

    Feed water temperature: 20 ° C

    Export steam temperature: 194 ° C

    Hydraulic test pressure: 1.65MPa

    Exhaust gas temperature: 69.19 ° C

    Boiler thermal efficiency: 99.7%

    Large size: 7133× 2700 × 3210

    Boiler weight: 24t


    10ton Gas Fired Steam Boiler technical data sheet as follow (for reference only) :


    ModelRatedRated workingRated steamSuitableFeed water
    outputpressure (Mpa)temperature (ºC)fuel kindtemperature (ºC)
    (t/h)
    WNS0.5-0.7/1.0/1.25-YQ0.50.7/1.0/1.25170/184/194heavy oil/light oil,natural gas/lpg/city gas20
    WNS0.7-0.7/1.0/1.25-YQ0.70.7/1.0/1.25170/184/19420
    WNS0.8-0.7/1.0/1.25-YQ0.80.7/1.0/1.25170/184/19420
    WNS1-0.7/1.0/1.25-YQ10.7/1.0/1.25170/184/19420
    WNS1.5-0.7/1.0/1.25-YQ1.50.7/1.0/1.25170/184/19420
    WNS2-1.0/1.25/1.6-YQ21.0/1.25/1.6184/194/20420
    WNS3-1.0/1.25/1.6-YQ31.0/1.25/1.6184/194/20420
    WNS4-1.0/1.25/1.6-YQ41.0/1.25/1.6184/194/20420
    WNS5-1.0/1.25/1.6-YQ51.0/1.25/1.6184/194/20420
    WNS6-1.0/1.25/1.6-YQ61.0/1.25/1.6184/194/20420
    WNS8-1.25/1.6-YQ81.25/1.6194/20420
    WNS10-1.25/1.6-YQ101.25/1.6194/20420
    WNS12-1.25/1.6-YQ121.25/1.6194/20420
    WNS15-1.25/1.6-YQ151.25/1.6194/20420
    WNS20-1.25/1.6-YQ201.25/1.6194/20420

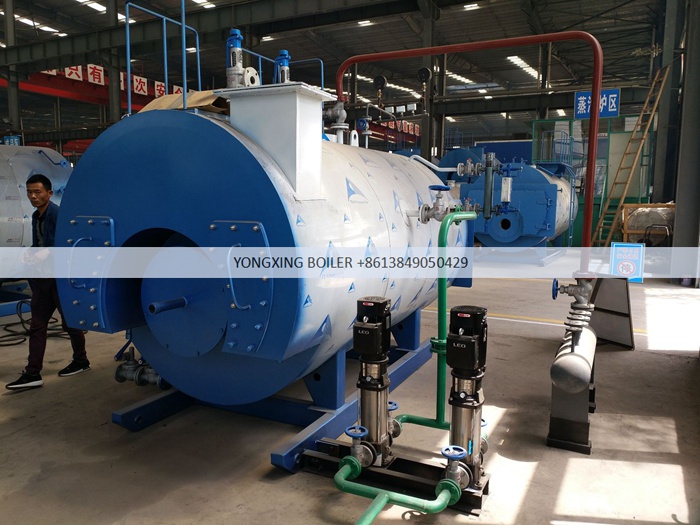

    Boiler in factory work shop :

    Stainless steel water pump build on same level of boiler ,no need to make foudations .
