    1.05MW Oil Furnace Hot Water Heater Stainless Steel For Textile Production Line

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : CWNS1.05-95/70-YQ
    Certification : ISO9001,ISO14001,A-CLASS,SGS,BV
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 1000SETS/MONTH
    Delivery Time : 15-30DAYS
    • Product Details
    • Company Profile

    1.05MW Oil Furnace Hot Water Heater Stainless Steel For Textile Production Line

    1.05MW CST380 furnace oil fired boiler for Textile production line


    The fuel gas hot water boiler for textile production line is small in size and covers a small area. Clean, low noise and low pollution make it a great choice for workshop factories.


    Furnace oil fired boiler design:
    The structure of the fuel hot water boiler is designed according to normal pressure. The top is provided with atmospheric holes. The boiler works under normal pressure and is away from the explosion hazard. The boiler furnace body is optimized by computer simulation, which fully optimizes the size of the boiler and makes the shape harmonious and beautiful.
    1. The CLHS vertical boiler adopts the burner under-burning mode. The fuel is burned in the furnace under micro-positive pressure. The high-temperature flue gas is radiated and exchanged in the furnace, and then enters the convective heat transfer of the pyrotechnic tube. Finally, it is discharged through the upper casing. . The flue pipe is inserted with a baffle to slow down the flue gas discharge speed, strengthen the heat exchange, ensure the heat generated by the fuel combustion to heat the boiler water to the greatest extent, and greatly improve the thermal efficiency of the boiler;

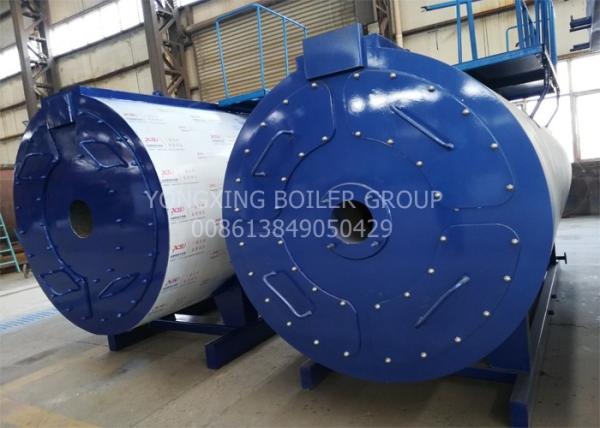

    2, CWNS horizontal Furnace oil fired boiler adopts full wet back three-return structure, long flue gas flow, lower exhaust gas temperature, full corrugated furnace setting, strong flame disturbance, strong heat transfer coefficient, and effectively prevent metal heat Expansion and contraction lead to a reduction in equipment life; large-diameter pipe and large-hole bridge clearance, so that the scale of the boiler is thin and easy to clean in an equal time.


    Furnace oil fired boiler 0.35MW-14MW, Oil Gas Fired hot water boiler technical datasheet

    Main technical parameters of CWNS oil (gas) atmospheric pressure and pressure hot water boiler
    Project modelCWNS, WNS series hot water boiler
    Rated calorific value (MW)0.350.71.051.42.12.83.54.25.678.410.512.614
    Working pressure (MPa)Normal pressure / pressure
    Outlet water temperature (°C)85/115
    Backwater temperature (°C)60/70
    Boiler thermal efficiency (%)91—95
    Feed water temperature (°C)20
    Fuel consumptionDiesel (Kg/h)3265.498131196.2261.6327392.4523.2654784.898111771310
    Heavy oil (Kg/h)3469.5105139208.5278347.54175566958641042.512511390
    Natural gas (m3/h)39.579.3119159237.9317.2396.5475.8644793951.61189.51427.41586
    Liquefied gas (m3/h)14.22943.55887116145174232290348435522580
    City gas (m3/h)84168.5253337505.5674842.510111348168520222527.530333370
    Boiler transportationLength (mm)28003500410045004700455057006300700072007840810082308250
    Width (mm)16001600190020002110221025002600270028002860310031003400
    High (mm)20002100231023602470258028002900320033003300340034003550
    Total power consumption (KW)2.36.71113.5192123.526373742455252
    Chimney diameter (mm)25035043045045055065065065080080090012001200
    Shipping weight (T)3.24.74.85.489.7813.415.417.417.423.83031.634.5
    Heating area (m2)300060009000120001800024000300003600048000600007200090000108000120000
    Water supply capacity (t)715223045607590120150180225270300
