    Biomass Travelling Grate Stoker 4m Width Steam Boilers Moving Grate Furnace For Paper Mill

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : SZL,DZL
    Certification : ISO9001,ISO14001
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000sets/year
    • Product Details
    • Company Profile

    Biomass Travelling Grate Stoker 4m Width Steam Boilers Moving Grate Furnace For Paper Mill

    Best design 4m width steam boilers moving grate furnace for paper mill


    Features:
    Our moving grate furnace is used in a wide range, especially can be used in paper mill industrial.

    It is mainly used in the following places
    Boilers: such as hot water boilers, steam boilers, heat transfer oil furnaces, hot air furnaces, drying furnaces, heating centers, etc.
    Various industries: textile industry, building materials industry, clothing industry, food industry, chemical industry, washing industry, paper industry, etc.


    1, The moving grate furnace can run continuously and has a long service life.

    2, Moving grate furnace with flexible use of spare parts. It is possible to use ordinary grate pieces, flake grate bars , large grate bars, high silicon Si5 heat resistant grate bars, and alloy steel grate bars, meeting the needs of different customers.
    3, Easy to repair and maintain. Our company will permanently provide the corresponding grate pieces to prepare for customer maintenance.


    Data sheet of small scale type fire grate bar

    Main technical Parameters of Small Scale Type Fire Grate
    Boiler Capacity
    (t/h)
    Active grate
    area (m2)
    Stoker height
    (mm)
    Wheel base
    (mm)
    Active grate width
    (mm)
    Width between
    two endplates
    (mm)
    Length of shaft
    out of grate (mm)
    Height of shaft
    out of grate (mm)
    Dia. of shaft out
    of grate (mm)
    Qty of
    wind chamber
    2t/h6.29405800127413901000655Φ805
    4t/h4.64825420012741390920540Φ804
    4t/h5.817504300127415901137470Φ804
    6t/h9.258805220199421101295598Φ808
    6t/h8.198905000185419701282603Φ805
    6t/h7.418004910171418301200513Φ804
    8t/h9.68805400199421101295598Φ805
    10t/h11.58606250203421501357575Φ955
    10t/h10.869996325199221081390715Φ955
    10t/h12.1110506000235424701620760Φ1005
    10t/h11.529926260203421501357710Φ955
    10t/h12.1110506000235424701620760Φ1005
    15t/h18.4110507000299431101950765Φ1005
    15t/h18.4110507000299431101950765Φ1005
    20t/h23.1410507500344435602175765Φ1306
    20t/h20.6210608510267427901690773Φ1258
    25t/h24.119758100328034302075688Φ1307

    Product applications and description

    Since the establishment of the company, after years of efforts, the grate products cover hot water boilers, steam boilers, organic heat carrier furnaces, hot air drying furnaces, thermal electric boilers and other equipment. A product system that uses coal, biomass, and municipal solid waste as combustion media has been formed. At the same time, it has strong technical force, advanced cold processing, hot processing equipment, large lifting equipment, sophisticated testing equipment and perfect quality assurance system.


    Furnace coal fired chain grate stoker can be applied in chemical plant, university, food factory, beverage factory, cannery, textile mills, paper mill, sugar plant, central heating and other industries.

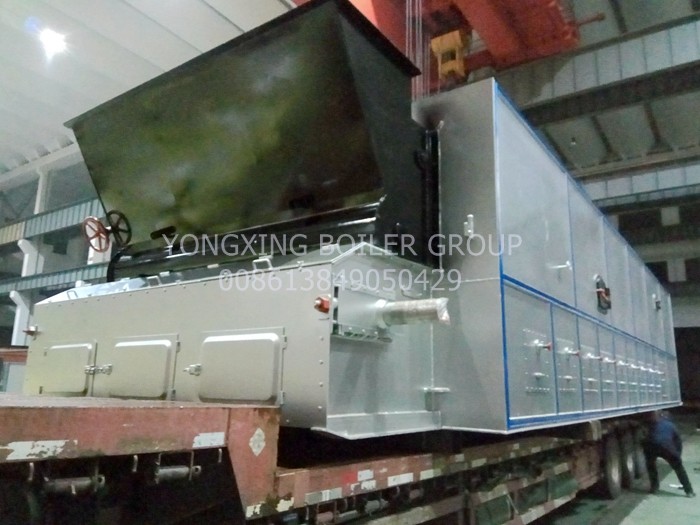

    Biomass Travelling Grate Stoker 4m Width Steam Boilers Moving Grate Furnace For Paper MillBiomass Travelling Grate Stoker 4m Width Steam Boilers Moving Grate Furnace For Paper Mill
