    Cast Steel Travelling Grate Furnace Moving Grate Boiler Grate Bars Design

    Ask Lasest Price
    Brand Name : YONGXING
    Model Number : SZL,DZL
    Certification : ISO9001,ISO14001
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000sets/year
    • Product Details
    • Company Profile

    Cast Steel Travelling Grate Furnace Moving Grate Boiler Grate Bars Design

    Reliable Reputation travelling grate furnace and grate bars design with good prices for textile factory


    Travelling grate furnace features:


    1. The travelling grate furnace produced by the company, the effective area of ​​the grate is 6-24 square meters, the applicable boiler capacity is 2t/h-25t/h, the effective width of the grate is 1274--3280mm, and the number of wind chambers It is 5-8.


    2. The company has the advantages of simple structure, convenient start-stop and low power consumption, and is widely used in coal mine heating, urban central heating, chemical, pharmaceutical, food and small power plants;


    3. The company has many years of grate production experience, the product covers many types of coal, biomass, drying furnace, etc., has a good reputation in the industry.


    4. The technical requirements of travelling grate furnace for bituminous coal.
    Particle size: 6--30mm.
    Moisture content: <12%.
    Coal ash content: <30%.
    Softening temperature of coal ash: >1250 °C
    Adhesion: <5.


    5. The travelling grate furnace has a simple structure, low manufacturing cost, and convenient installation and operation management.

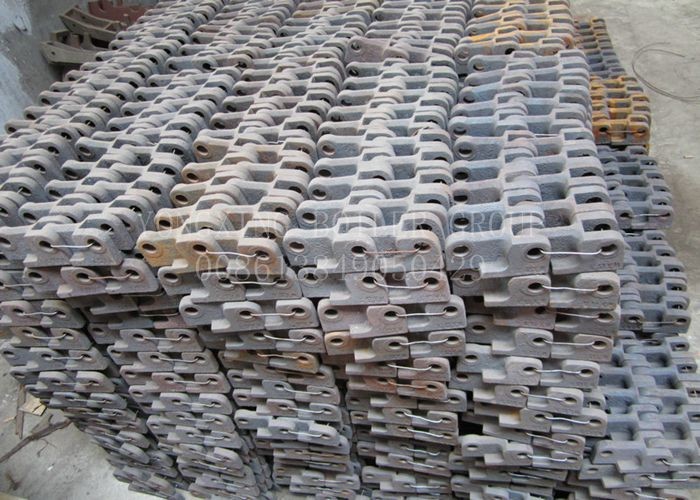

    6. In view of the problem that the traditional travelling grate furnace is easy to break, the company has developed a large block of flakes through years of research and development and practical experience, and combined the original multi-piece grate pieces into one piece, successfully solved the above problems.


    7. For the problem that biomass fuel is prone to ash accumulation and slagging, the company has effectively controlled the exit combustion temperature of the furnace and the gas flow rate of the tail flue through special design, which effectively avoids the above problems.


    Product applications and description


    Since the establishment of the company, after years of effort, the grate products cover hot water boilers, steam boilers, organic heat carrier furnaces, hot air drying furnaces, thermal electric boilers and other equipment. A product system that uses coal, biomass, and municipal solid waste as combustion media have been formed. At the same time, it has strong technical force, advanced cold processing, hot processing equipment, large lifting equipment, sophisticated testing equipment and a perfect quality assurance system.

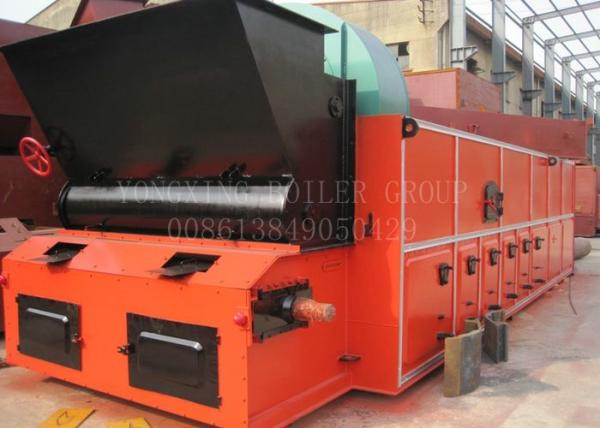

    Cast Steel Travelling Grate Furnace Moving Grate Boiler Grate Bars Design

    Cast Steel Travelling Grate Furnace Moving Grate Boiler Grate Bars Design


    Data sheet of travelling grate furnace

    Main technical Parameters of Small Scale Type Fire Grate
    Boiler Capacity
    (t/h)
    Active grate
    area (m2)
    Stoker height
    (mm)
    Wheel base
    (mm)
    Active grate width
    (mm)
    Width between
    two endplates
    (mm)
    Length of shaft
    out of grate (mm)
    Height of shaft
    out of grate (mm)
    Dia. of shaft out
    of grate (mm)
    Qty of
    wind chamber
    2t/h6.29405800127413901000655Φ805
    4t/h4.64825420012741390920540Φ804
    4t/h5.817504300127415901137470Φ804
    6t/h9.258805220199421101295598Φ808
    6t/h8.198905000185419701282603Φ805
    6t/h7.418004910171418301200513Φ804
    8t/h9.68805400199421101295598Φ805
    10t/h11.58606250203421501357575Φ955
    10t/h10.869996325199221081390715Φ955
    10t/h12.1110506000235424701620760Φ1005
    10t/h11.529926260203421501357710Φ955
    10t/h12.1110506000235424701620760Φ1005
    15t/h18.4110507000299431101950765Φ1005
    15t/h18.4110507000299431101950765Φ1005
    20t/h23.1410507500344435602175765Φ1306
    20t/h20.6210608510267427901690773Φ1258
    25t/h24.119758100328034302075688Φ1307

    Main technical Parameters of Chain Grate Combustion Device
    DataL-1L-2L-4L-6L-8L-10L-15L-20
    BoilerRated steam
    output(t/h)
    12468101520
    Power(Mw)0.71.42.84.25.6710.514
    Grate area (㎡)2.0534.78.088.8811.817.8
    (16.11)
    22.5
    (20.8)
    Furnace arch
    (Optional)
    1. Suitable for the furnace arch of Class II.III bituminous coal.
    2. Furnace arch for anthracite and its blended fuel.

    Furnace coal fired chain grate stoker can be applied in a chemical plant, university, food factory, beverage factory, cannery, textile mills, paper mill, sugar plant, central heating and other industries.
