High Efficiency Industrial Use Riello burner gas burners Gas Steam Boiler Burner with wholesale price

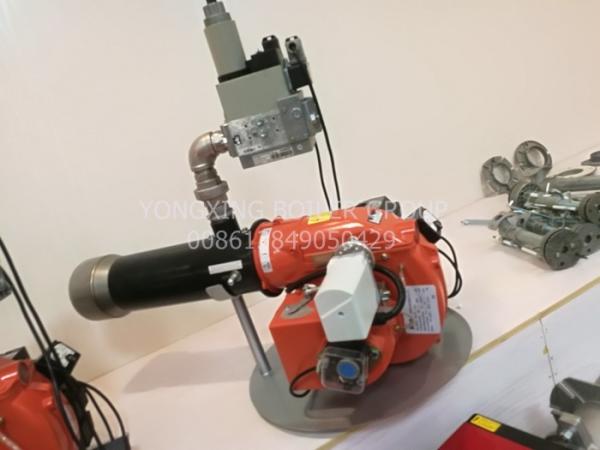

Gas Steam Boiler Burner features

1. The burner is equipped with air pressure relay, which is used to feel the air volume of the fan.

When the air volume cannot reach the preset requirements, the pressure relay is disconnected from the circuit, the upper program controller of the burner shows fault, stops burning, and ensures safe operation.

2. Pressure relays are divided into two types. One is to adopt the method of negative pressure.

3. The other adopts positive pressure, which is installed in the direction of fan outlet and connected with a pipe to the positive pressure air pressure relay. When the fan blows, there is wind entering the positive pressure air relay, forming a pressure and making the relay operate.

4.The combustion machine is also equipped with a fire trap monitoring system, commonly known as the electric eye, which is used for detection before ignition and flame monitoring after ignition.

When the flame should be detected, if the flame cannot be detected, the program controller of the combustion engine will display obstacles and cut off the fuel supply system to prevent deflagration.

Other advantages

1. The fuel of the gas burner is mainly divided into liquefied natural gas, natural gas, city gas, etc., mainly in the heat value and pressure are different, according to the different heat value and pressure, choose the burner and the gas valve assembly, the following is the main components of the gas valve assembly.

2. Air valve assembly: the applicable voltage is generally 230VAC/ 50/60hz. When not working or without voltage, the air valve is normally closed.

3. High-power burners usually have two valves, one safety valve and one main control valve.

The larger burners have three valves, the pre-ignition valve, the relief valve, and the main control valve.

The main control valve and safety valve are connected as one, and the main control valve and safety valve are separated.

Air valve components and accessories, limit low pressure protection switch, limit high pressure protection switch, pressure gauge, valve leakage detector.

LANDIS&GRY and DUNGS are the two brands that are most commonly used today.

4. The control mode includes AGP two-stage sliding control mode, switching mode and two-stage control mode.

GAS OIL burner burner manufacturers with famous part ,long life time:
SIEMENS CONTROLLER
DUNGS VALVE
DANFOSS NOZZLE
SUNTEC OIL PUMP
BRAHMA/PARKER SOLENOID VALVE
FIDA TRANSFERMA
SIEMENS SERVOMOTOR

INDUSTRIAL LIGHT OIL BURNER DATASHEET FOR REFERENCE

Natural gas burner model

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.
