Best selling cast iron flake chain grate bars and active grate bar in coal boiler for textile factory

Heat resistant alloy steel boiler

1.The grate piece material is excellent heat-resistant alloy steel, the grate structure and movement mode are simple, it is not easy to jam, the failure rate is low, and a lot of maintenance and maintenance costs are saved.

2.The grate piece is replaced from the 4th year, and the annual replacement rate is 2% or less. The modular structure of the furnace section facilitates road transportation and on-site installation, and can be assembled first in the workshop and improve the accuracy required for on-site installation.

3.Through the reciprocating motion of the grate and the drop between the grate, the garbage can be well stirred and burned easily. Effectively disintegrate the garbage, the three sections of the grate lead to a good uniform mixing effect of the garbage, so that the combustion is stable.

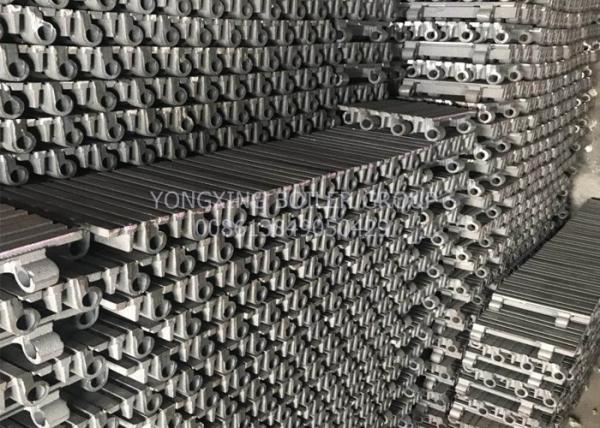

Product Name: Boiler passive bar

Specifications: 10mm, 18mm boiler to pay

Product material: gray iron, Malleable iron

For different calorific value garbage, different air volume is allocated, combustion air is supplied, and each row of grate driving can be independently controlled, which is convenient for separate control of feeding amount and air volume in different combustion areas. A lap joint structure is arranged between each row of slabs, garbage does not leak from between adjacent slabs, and there is almost no friction between the slabs of the same row; elastic wear-resistant blades are arranged at the front of the grate pieces Reduce wear and increase the service life of the grate. A cooling insert is installed on the bottom surface of the grate sheet, so that the cooling effect of the primary air is good, and the grate is hardly burned.

Flake type grate bar

1.Vibrating

There is a small inclination between the grate surface and the horizontal plane, and the grate piece generates periodic vibration by the action of the motor and the eccentric wheel. When vibrating, the fuel layer continuously moves toward the rear of the furnace, so that the burnt ash falls into the ash pit at the end of the grate. This grate is characterized by a simple structure.

2. Feeding bottom

A trough-shaped grate with a screw rod at the bottom of the trough, leading to the coal hopper outside the furnace. The coal is sent from the lower part of the coal hopper to the coal tank through the auger, and enters the high temperature zone from bottom to top. When the ash exceeds the accumulation angle, it is discharged to both sides by gravity. The grate structure is simple, but has certain requirements on the particle size and humidity of the coal, and is generally only applicable to small industrial boilers having an evaporation amount of less than 1 ton / hr.

3. Reciprocating grate

It consists of a set of fixed grate pieces and a set of reciprocating movable grate pieces, which are divided into two types: stepped and horizontal. The reciprocating motion of the movable grate plate gradually pushes the coal seam to the rear combustion, so the grate is more adaptable to the coal species.

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.
